5.5mm2 PVCC Solar Extension Cable with DC Waterproof Connector
This extension cable offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer’s unique needs between the solar panel and charge controller.
Product Characteristics:
|
CONNECTOR |
No. |
SKE-Q4.10 |
|
Rate Voltage |
IEC 1500V &UL 1500V |
|
|
Rated Current |
35A，41A，46A |
|
|
Over voltage Category / Pollution Degree |
II |
|
|
Flammability Class |
5VA | |
|
Contact Resistance |
≤5mΩ |
|
|
Degree of Protection |
IP68 |
| PVCC Solar Cable | Cross Section(mm2) | 5.5mm2 |
| Construction(No./mm) | 7/1.00 | |
| Cable O.D.(mm) | 6.3mm、7.00mm | |
| Voltage Rating | DC:1500V | |
| Test Voltage | 3000V AC | |
| Temperature Rating |
Rated: -40°C to +90°C |
|
| Conductor Material |
Stranded bare copper |
|
| Testing Standard |
Cold Bending Test : JIS C3660-1-4 Flame Test : JIS C 3665-1-2 |

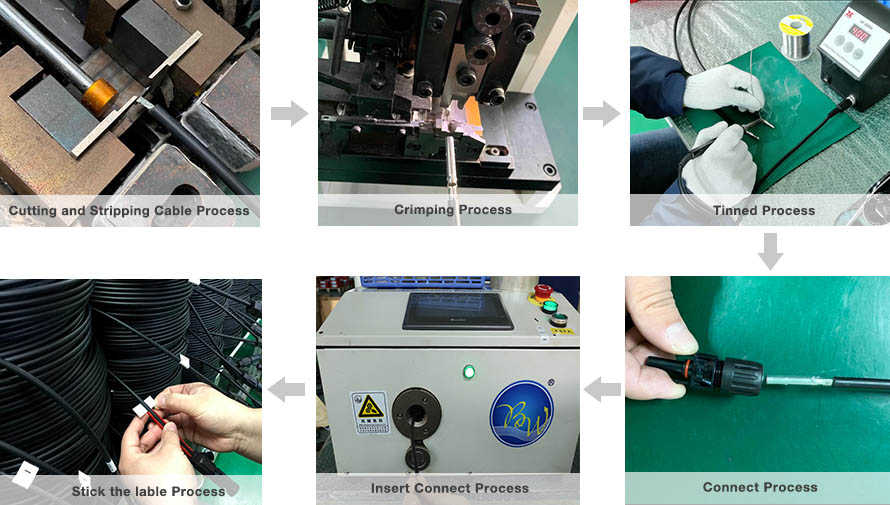

Product Processing:
Product Features:
------Connector is set up at SINGLE end of cable;
------Appointed length is acceptable;
------No need for terminal processing;
------Tinned copper contact is pre-assembled , no need for crush tool;
------If O.D. of two ends are different can also be connected;
------Application : used in solar system , module, junction box and so on.

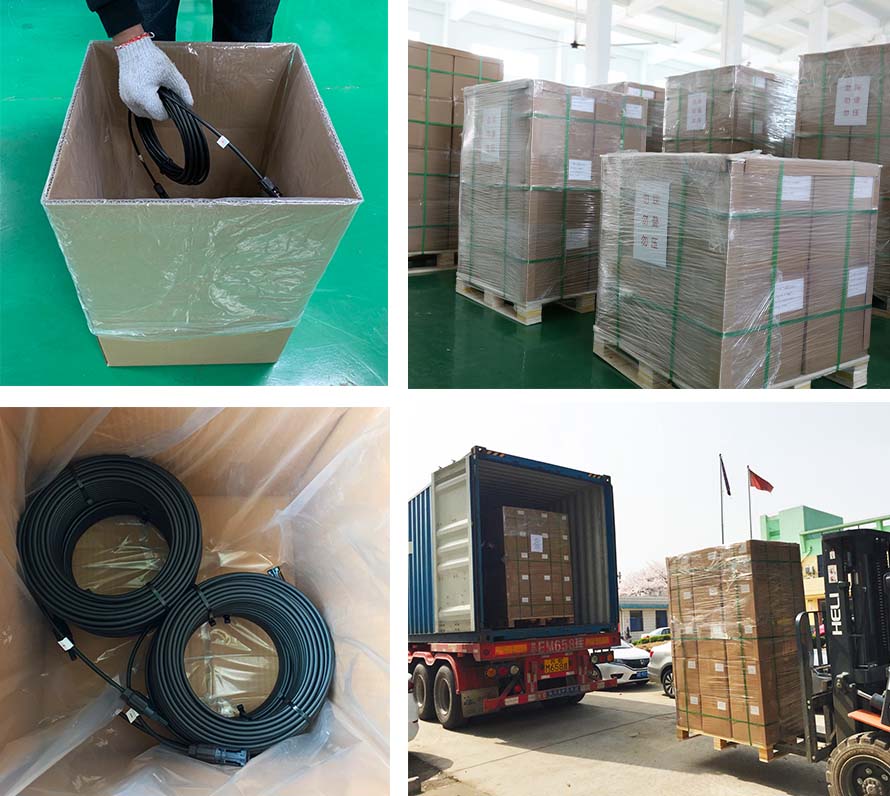

Packing & Delivery:
Application Scenario:
Company Profile:
CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,PV1-F solar cable, solar connectors for PV system , PV connectors, pvc coated wire mesh fence, inverters etc solar products .
CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
