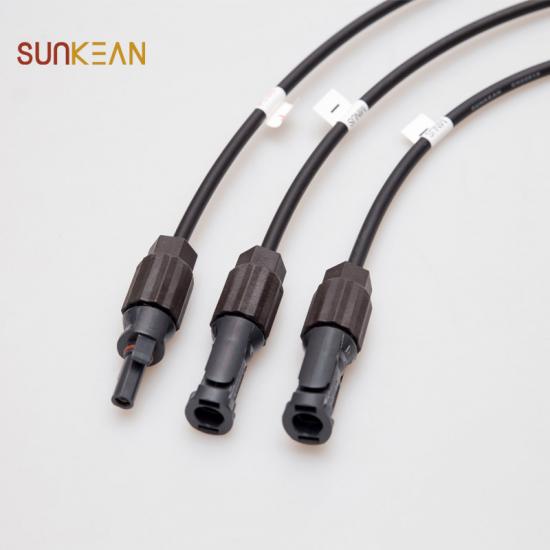

PV junction cable for solar system
Solar Pv Cable is used for the cable connection between solar modules and the extension cable between the module string and the DC/AC inverter, photovoltaic power stations, solar parks, gables and rooftop photovoltaic systems.
Product Characteristics:
| CONNECTOR |
Suitable Cables O.D. range |
5.8mm~7.3mm |
|
Rated Voltage |
TUV 1500V DC |
|
|
Protection Degree |
IP68 |
|
|
Cable Specification |
1×4mm²/12AWG,1×6mm²/10AWG |
|
|
Contact Resistance |
≤0.5mΩ |
|
|
Type Selection |
Compatible |
| SOLAR CABLE |
Cross Section |
4mm²/6mm² |
|
Conductor Construction(n/m) |
56/0.285,84/0.285 |
|
|
Cable OD. |
5.3mm-7.10mm |
|
|
Certificate |
TUV,EN,JET |
|
|
Rated Voltage |
AC 0.6/1KV; DC1.0/1.8KV |
Product Processing:
Product Features:
------Connector is set up at BOTH or SINGLE end of cable;
------Appointed length is acceptable;
------No need for terminal processing;
------Tinned copper contact is pre-assembled , no need for crush tool;
------If O.D. of two ends are different can also be connected;
------Application : used in solar system , module, junction box and so on.
Packing & Delivery:
Application Scenario:
Company Profile:
CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,PV1-F solar cable, solar connectors for PV system , PV connectors, pvc coated wire mesh fence, inverters etc solar products .
CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
