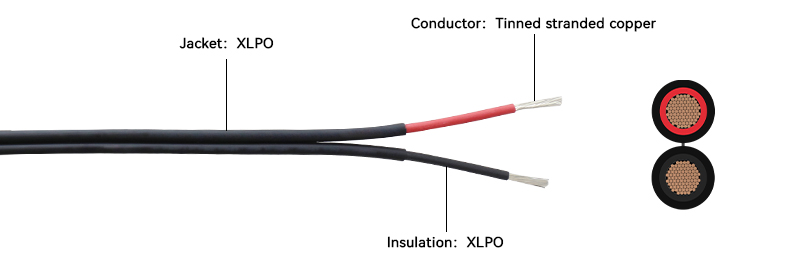

Double-Core PV1-F Solar Junction Cable used in Solar Power Plant
We have rich manufacturing experience. Exporting solar products all over the world. This dual-core solar junction cable use TÜV 2PfG PV1-F solar cable, dual-core cable is more convenient to manage.
Product Characteristics:
| Cable Name |
Twin core TÜV 2PfG PV1-F solar cable |
| Voltage Rating | DC:1000V |
| Test Voltage | 6500V AC |
| Temperature Rating |
Rated: -40°C to +90°C |
| Testing Standard |
Flame Test : IEC60332-1-2, EN60332-1-2 Halogen Free: EN50627-2-1, EN60684-2 |
| Cable Name |
Cross Section (mm²) |
Construction (No.mm) |
Insulation O.D. (mm) |
Cable O.D. (mm) |
Conductor Resistance Max(Ώ/km, 20°C) |
|
Twin core TÜV 2PfG PV1-F |
2*4.0 | 56/0.285 | 3.55 | 4.60*9.40 | 5.09 |
| 2*6.0 | 84/0.285 | 4.15 | 5.20*10.60 | 3.39 | |
| 2*10.0 | 77/0.40 | 5.15 | 6.30*12.80 | 1.95 |
Product Processing:
Product Features:

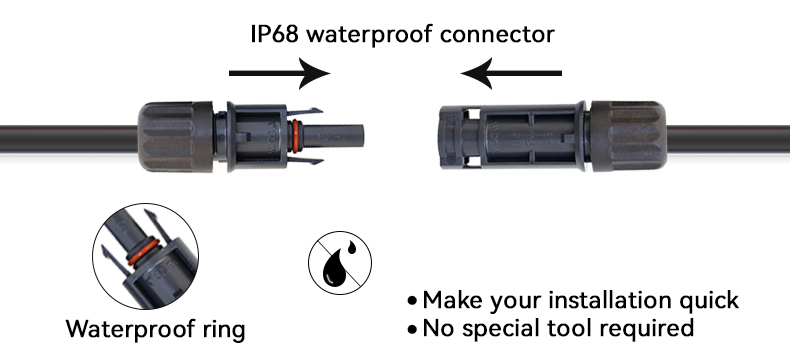

------Connector is set up at double end of cable;
------Dual-core cable allows for less cable management concerns;
------Improve construction efficiency;
------Reduce labor costs;
------Appointed length is acceptable.
Packing & Delivery:
Application Scenario:
Company Profile:
CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,PV1-F solar cable, solar connectors for PV system , PV connectors, pvc coated wire mesh fence, inverters etc solar products .
CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable, photovoltaic cable, xlpo solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
