EN50620/IEC62893 EVC H05BZ5-F Charging Cable
Low temperature resistance, oil resistant, acid and alkali resistant, ozone resistant, hydrolysis resistance.
Technical data:
|
Conductor: |
Bare copper |
|

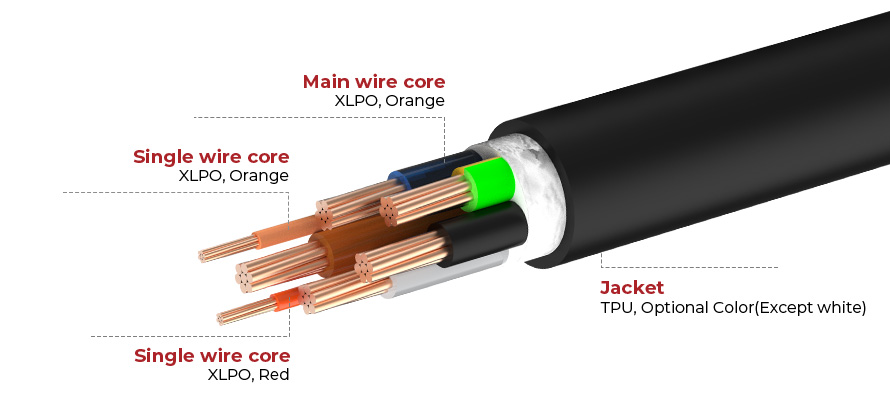

Insulating material / color: |
XLPO Main core: Blue, brown, black, gray, yellow and green Single wire core:Orange,red |
|
Out layer material / color: |
TPU / Optional colors(except white) |
| Rated voltage: |
AC 300 / 500 V |
| Temperature rating: | -40°C to +90°C |
| Flame Test: | IEC60332-1 |
| According to: |
EN50620, IEC62893 |
|
Cross section (AWG) |
Permissible ampacity(Ref.) (A) |
Insulation Nom Thickness (mm) |
Outer Sheath Nom Thickness (mm) |
Non-shiedlded Cable O.D. (mm) |
Conductor Resistance Max (Ω/km, 20°C) |
| 3x1.5mm2+(0~10)x(0.5~1.0) | 10 | 0.60 | 1.50 | 8.9~11.6 | 13.3 |
|
3x2.5mm2+(0~10)x(0.5~1.0) |
16 |
0.60 |
1.60 |
10.1~13.2 |
7.98 |
