Armored Cable Class2 16mm² Dual-core TÜV 2PfG/2642 1500V DC Aluminum Core Direct Burial Wire
Halogen free. UV-resistant low voltage cable. The TÜV2642 aluminum cable is especially well suited for outdoor applications and burial directly in the ground. Multi-core design to reduce construction costs.

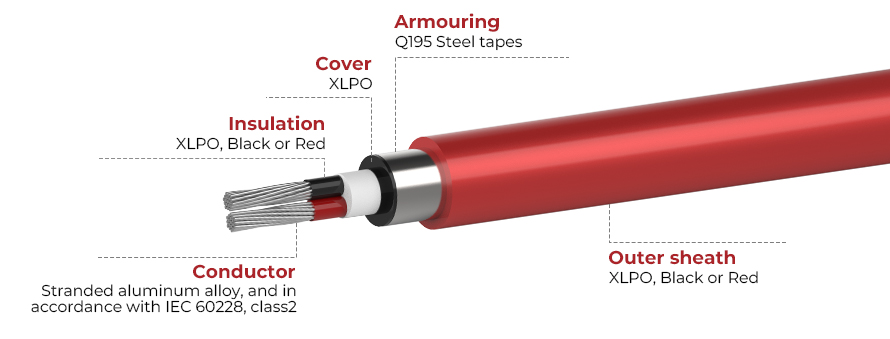

Product Description:
| Conductor: |
Stranded aluminum alloy, class 2
|
|
Insulation: |
Crosslink polyethylene compound, XLPO |
| Outer sheath: | Crosslink polyethylene compound, XLPO |
| Rated voltage: |
1500VDC U0 / U=1000V / 1000VAC |
| Max. voltage: | 1800VDC |
| Insulation color: |
Black or Red |
| Outer sheath color: |
Black or Red |
|
Max. Conductor Operating Temperature: |
-40°C to 90°C |
|
Standards applied: |
2PfG 2642/01.22, IEC 60228, IEC 60332-1-2 |
|
Cross Section
(mm²）
|
Strands Class 2 |
Stranded O.D. (mm) |
Inner Layer O.D.
(mm)
|
Cover O.D. (mm) |
Armored (mm) |
Cable O.D. (mm) |
Gross Weight (kg/km) |
Conductor resistance Max (Ώ/km, DC20℃) |
| 10 |
7 |
3.90 |
5.50 |
13.20 | 14.00 | 17.60 | 674.70 |
3.080 |
| 16 |
7 |
4.80 |
6.60 |
15.40 | 16.20 | 19.80 | 823.60 |
1.910 |
| 25 |
7 |
6.00 |
8.00 |
18.20 | 19.00 | 22.60 | 1019.80 |
1.200 |
| 35 |
7 |
7.00 |
9.20 |
20.60 | 21.40 | 25.00 | 1205.40 |
0.868 |
| 50 |
7 |
8.30 |
10.70 |
23.60 | 24.40 | 28.00 | 1432.60 |
0.641 |
| 70 |
14 |
9.90 |
12.30 |
27.20 | 28.00 | 31.80 | 1806.10 |
0.443 |
| 95 | 19 | 11.50 | 14.10 | 30.80 | 31.60 | 35.60 | 2186.50 | 0.320 |
| 120 | 19 | 13.00 | 15.60 | 34.20 | 35.00 | 39.40 | 2588.20 | 0.253 |
