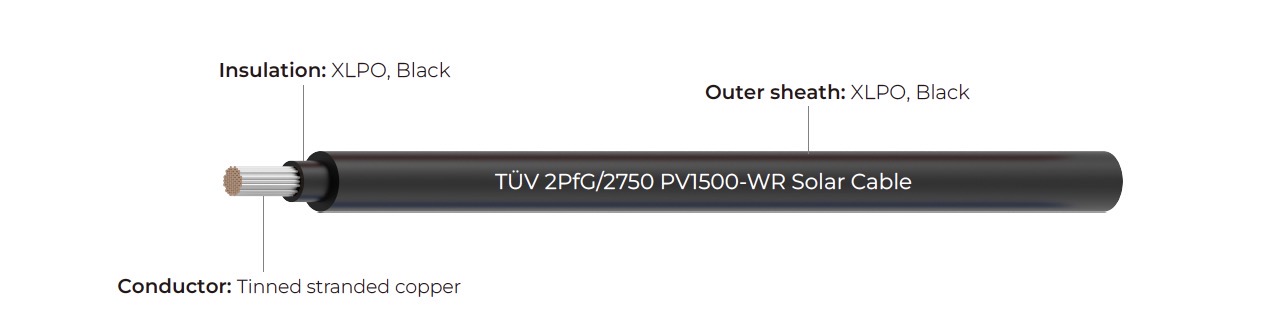

TÜV 2PfG 2750（PV1500-WR) 10mm² waterproof Solar PV Cable
CABLENTIS TÜV 2PfG 2750（PV1500-WR) floating PV Certification Solar Cable, higher uv-stability higher water resistance higher mechanical stability and higher insulation resistance.
Product description:
|
Voltage Rating(Uo/U) |
DC: 1500V |
Test Voltage |
6.5KVAC/5min |
|
Temperature Rating |
Rated: -40°C to +90°C Max.short circuit temp: 250°C / 5S |
Maximum voltage: |
Um=1800VDC
|
|
Cross Section (mm²) |
Number of Strands Class |
Conductor O.D. (mm)
|
Insulation O.D. (mm) |
Cable O.D.(mm) |
Weight(kg/km) |
Conductor Resistance Max(Ω/km,20°C) |
| 1.5 | 30 | 1.57 | 3.05 | 4.70 | 33.68 | 13.7 |
| 2.5 | 49 | 2.02 | 3.50 | 5.20 | 45.55 | 8.21 |
| 4 | 56 | 2.46 | 3.85 | 5.50 | 57.35 | 5.09 |
| 6 | 84 | 3.01 | 4.45 | 6.10 | 77.45 | 3.39 |
| 10 | 77 | 4.05 | 5.70 | 7.30 | 124.91 | 1.95 |
|
16 |
126 | 5.55 | 7.35 | 9.20 | 203.01 | 1.24 |
| 25 | 196 | 6.92 | 8.95 | 11.00 | 304.67 | 0.795 |
| 35 | 276 | 8.24 | 10.45 | 12.70 | 419.64 | 0.565 |
Packing & Delivery:
Application Scenario:
Company Profile:
CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover panel solar system, solar cables, solar extension cables , home energy solar systems, Solar power fence, three phase inverters etc solar products .
CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
