UL3289 XLPO insulated battery cable for energy storage system
UL3289 energy storage cables are preferably tinned copper stranded, or bare copper stranded or single conductor, insulated XLPO, passed RoHS, easy to strip, easy to cut.
XLPO material Energy Storage Cable UL3289 Information:

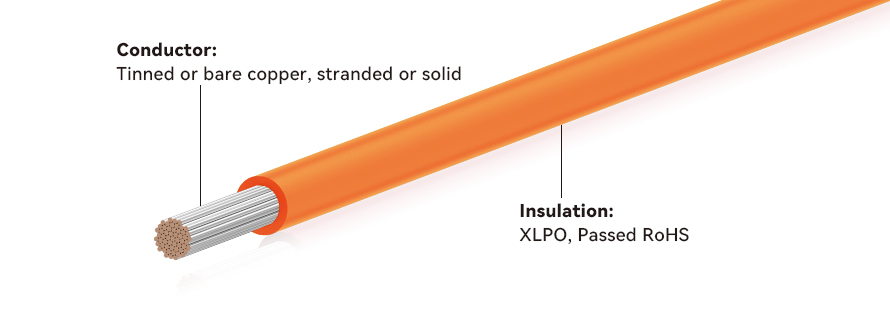

| Conductor |
Tinned or bare copper, stranded or solid |
|
Insulation |
XLPO, RoHS compliant |
|
Rated voltage |
600Vac, 750Vdc |
|
Rated temperature |
150°C |
| Cable Name |
Cross Section (AWG) |
Construction (No./mm) |
Conductor O.D. (mm) |
Insulation thickness (mm) |
Insulation O.D. (mm) |
Conductor Resistance Max (Ώ/km,20°C) |
| UL3289 | 26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 150 |
| 24 | 11/0.16 | 0.61 |
0.76 |
2.20 | 94.2 | |
| 22 | 17/0.16 | 0.76 |
0.76 |
2.35 | 59.4 | |
| 20 | 26/0.16 | 0.94 |
0.76 |
2.55 | 36.7 | |
| 18 | 16/0.254 | 1.15 |
0.76 |
2.80 | 23.2 | |
| 16 | 26/0.254 | 1.50 |
0.76 |
3.15 | 14.6 | |
| 14 | 41/0.254 | 1.88 |
0.76 |
3.55 | 8.96 | |
| 12 | 65/0.254 | 2.36 |
0.76 |
4.05 | 5.64 | |
| 10 | 105/0.254 | 3.10 |
0.76 |
4.90 | 3.546 | |
| 8 |
168/0.254 |
4.25 | 1.15 | 6.60 | 2.23 | |
| 6 | 266/0.254 |
5.35 |
1.15 | 7.80 | 1.403 | |
| 4 | 420/0.254 |
6.70 |
1.15 | 9.10 | 0.882 | |
| 2 | 665/0.254 |
8.45 |
1.53 | 11.60 | 0.5548 | |
| 1 | 836/0.254 | 9.50 | 2.03 | 13.70 | 0.4398 | |
| 1/0 | 1045/0.254 |
10.60 |
2.03 | 14.90 | 0.3487 | |
| 2/0 | 1330/0.254 |
12.00 |
2.03 | 16.20 | 0.2766 | |
| 3/0 | 1672/0.254 |
13.45 |
2.03 | 17.70 | 0.2194 | |
| 4/0 | 2109/0.254 | 14.85 | 2.03 | 19.10 | 0.1722 |
