Solar Mounting System Accessories

Solar Components Mounting System Stainless Steel Grounding Clip

The CABLENTIS lightning protection grounding clip is a simple lightning protection grounding component that pierces the metal oxide surface on the photovoltaic module frame and the photovoltaic rail or purlin to realize the electrostatic conduction on the solar module frame and the installation rail or purlin.

Item NO.:
Ground clip
Lead Time:
1-2 weeks
Product Orgin:
CHINA
Shipping Port:
SHANGHAI , CHINA
Payment:
T/T ， L/C
goods stock:
100000

Inquiry now

Product Detail

Solar Components Mounting System Stainless Steel Grounding Clip

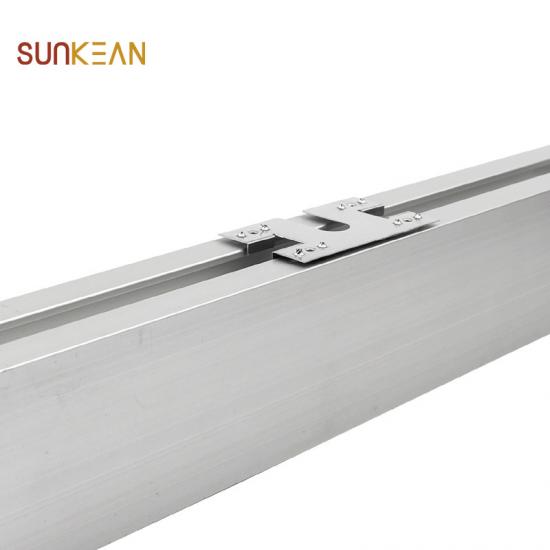

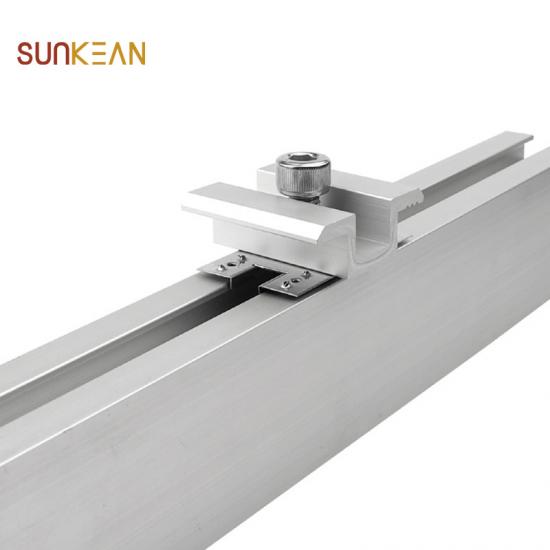

This part is usually made of stainless steel 304 or 316, which has strong corrosion resistance and is placed on the photovoltaic rail (purlin) and photovoltaic block bracket for installation. When the bolts on the pressure block are locked, the spikes on the lightning protection grounding bar will pierce the anodized layer of the aluminum alloy rail or any other conductive metal purlin structure surface layer, so that the metal structures in contact with each other form an airtight Electrostatic connection.

Product Information:

Material composition

304 or 316 stainless steel

Product features

Strong corrosion resistance, convenient installation and low cost

Installation position

Photovoltaic aluminum rail, profile steel purlin, photovoltaic aluminum compact or aluminum alloy pallet, etc.

Applicable projects

Industrial and commercial rooftop distributed projects, household rooftop projects, ground photovoltaic projects, and BIPV projects, etc.

Solar Mounting System Accessories Features:

The product is made of 304 or 316 stainless steel with strong corrosion resistance.
No special tools are required for installation of this product, which saves time and labor during installation.
The product has low cost and can completely replace the yellow-green ground wire.
It can be installed and used on photovoltaic aluminum rails, steel purlins, photovoltaic aluminum compacts or aluminum alloy pallets, especially suitable for domestic and foreign industrial and commercial rooftop distributed photovoltaic projects, ground photovoltaic projects and BIPV projects.
Comply with AS/NZS1170.2 product standard, design with reference to ANSI/UL467, UL2703, CSA standard.
Customized production can be made according to the actual project needs of customers.

Company Profile:

CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover solar inverter,Solar PV assembly cable, home solar panel , mini solar inverter for home, deep cycle battery systems for solar, solar cable etc solar products .

CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.

If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
