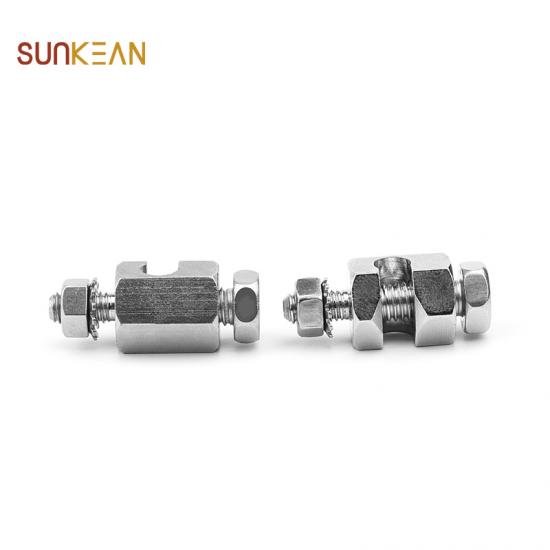

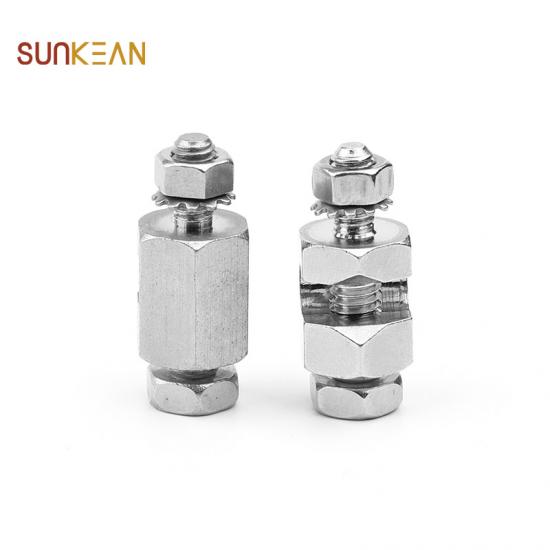

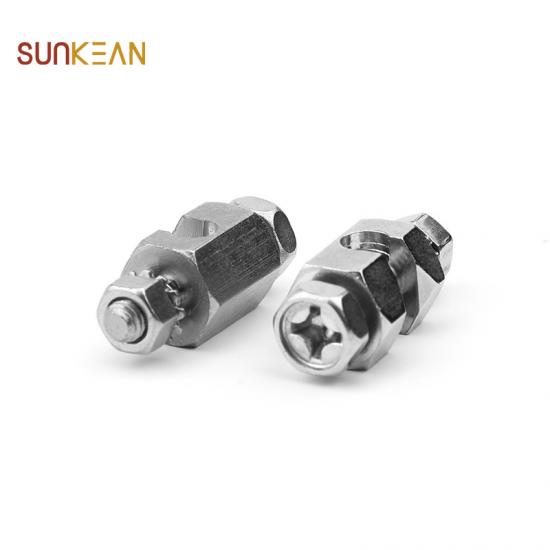

High Performance lightning protection solar PV Grounding Clamps for Solar Mounting System

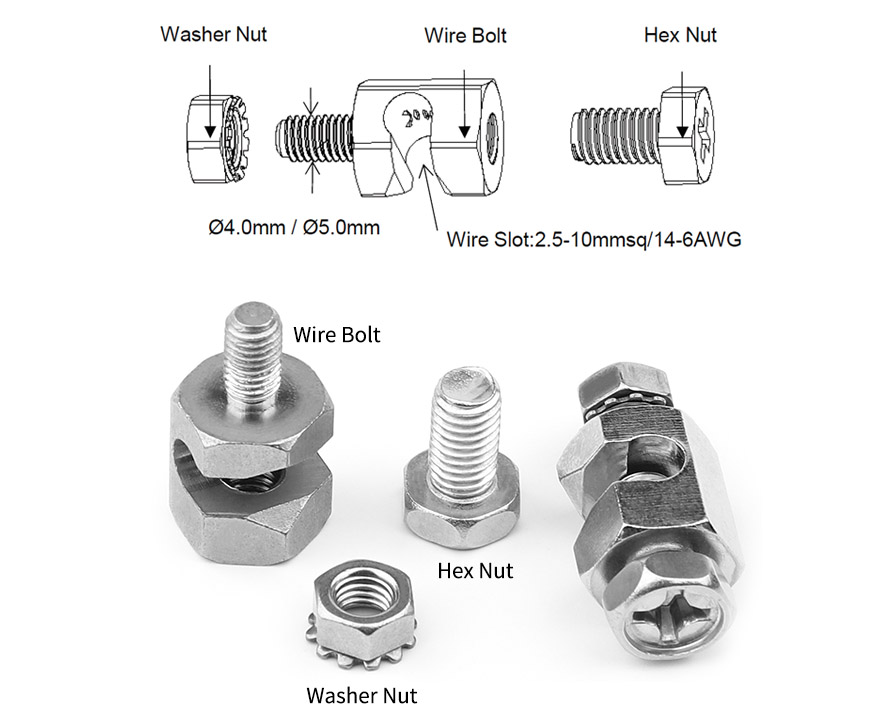

This grounding connector shortens the installation time of a ground wire to a solar panel frame.The threaded connector inserts through a hole in the frame and uses two hex nuts to help provide a reliable connection. In connecting to the frame, the connector body and the one-piece lock washer nut penetrates the surface of the aluminum frame helping to create a reliable ground path.Spring loaded grounding connector feature copper braid between brass jaw pads for optimum conductivity. Strong spring pressure, available in different amperages.
Product Information:
Tin-plated Copper
Product specifications
Ambient temperature
-40°C ... +90°C
Frame Thickness Range
Mounting hole diameter
Ø4.0mm/ Ø5.0mm
Cable size(mmsq/AWG)
2.5/4/6/10mm² & 14/12/10/8/6AWG
Used voltage
Model No.
SKE-ECP
Material
13mm x 32mm
0.8-4.5mm
600-1500V
Solar PV Grounding Clamps Features:
1) Quick and easy mounting procedures.
2) Rugged and compact hex bolt design made from stainless steel
3) Bottom edge feature cuts through the anodized aluminum surface when securing the hex bolt to the module frame.
4) Standard tooling can be used with the hex nuts.
5) Product appearance concise .
6) Small, flexible and fitted various place assemble.

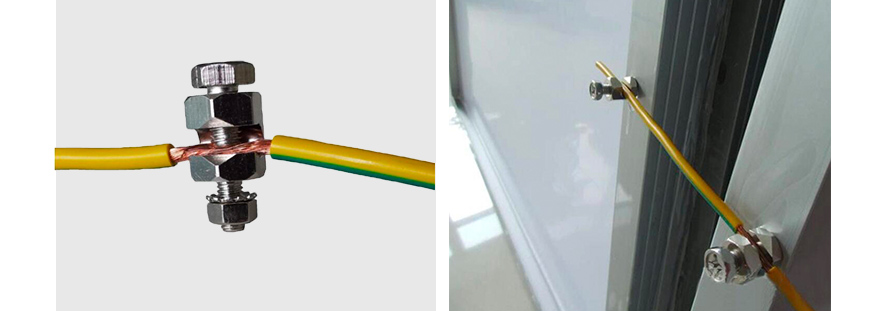

Application Scenario:
