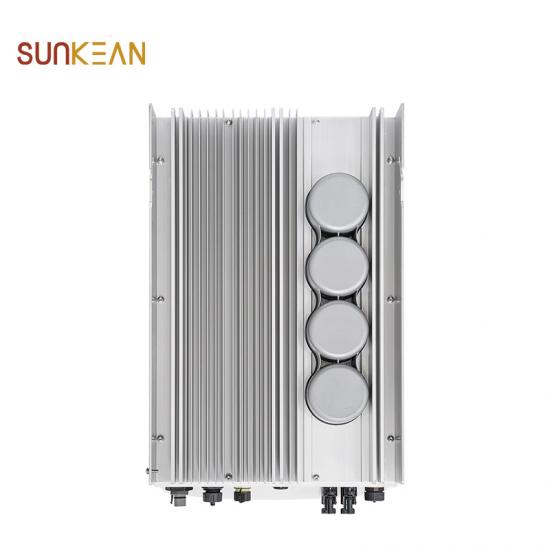

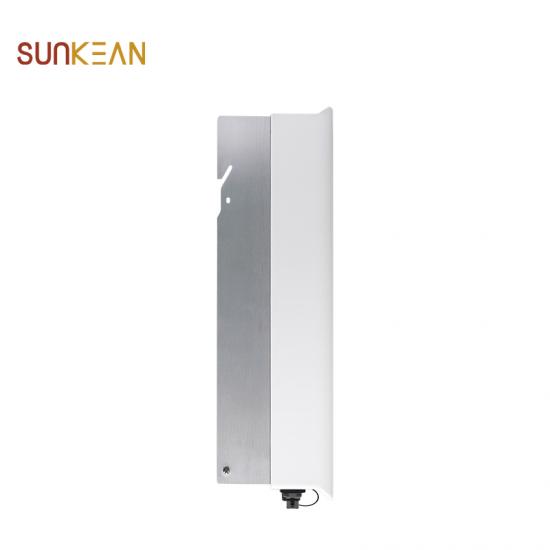

4G Single Phase 6kw PV Grid Tie Inverter
6kW Single phase series string inverter's efficiency of has improved dramatically. SKE-1P（6kW）-4G is suitable for the installation of single-phase input pv system of residential and adopt ultra-high switching frequency, ultra-thin single four-layer board design can greatly reduce the risk caused by the connector.
Product Information:
| Datasheet | |||||||
| Model Name | SKE-1P2.5K-4G | SKE-1P3K-4G | SKE-1P4K-3.6G | SKE-1P4K-4G | SKE-1P4.6K-4G | SKE-1P5K-4G | SKE-1P6K-4G |
| Input DC | |||||||
| Recommended max. PV power | 3kW | 3.5kW | 4.2kW | 4.6kW | 5.3kW | 5.8kW | 6.6kW |
| Max. input voltage | 550V | 600V | |||||
| Rated voltage | 250V | 330V | |||||
| Start-up voltage | 60V | 120V | |||||
| MPPT voltage range | 50-450V | 90-520V | |||||
| Max. Input current | 11A/11A | ||||||
| Max. short circuit current | 17.2A/17.2A | ||||||
| MPPT number/Max. input strings number | 2/2 | ||||||
| Output AC | |||||||
| Rated output power | 2.5kW | 3kW | 3.6kW | 4kW | 4.6kW | 5kW | 6kW |
| Max. apparent output power | 2.8kVA | 3.3kVA | 4kVA | 4.4kVA | 5kVA | 5kVA | 6kVA |
| Max. output power | 2.8kW | 3.3kW | 4kW | 4.4kW | 5kW | 5kW | 6kW |
| Rated grid voltage | 1/N/PE,220/230V | ||||||
| Rated grid frequency | 50/60HZ | ||||||
| Rated grid output current | 11.4A/10.9A | 13.6A/13.0A | 16A/15.7A | 18.2A/17.4A | 20.9A/20.0A | 22.7A/21.7A | 27.3A |
| Max. output current | 13.3A | 15.7A | 16.0A | 21.0A | 23.8A | 25.0A | 27.3A |
| Power Factor | >0.99 (0.8 leading - 0.8 lagging) | ||||||
| THDi | <3% | ||||||
| Efficiency | |||||||
| Max. efficiency | 97.8% | 98.1% | |||||
| EU efficiency | 97.1% | 97.3% | |||||
| Protection | |||||||
| DC reverse-polarity protection | Yes | ||||||
| Short circuit protection | Yes | ||||||
| Output over current protection | Yes | ||||||
| Surge protection | Yes | ||||||
| Grid monitoring | Yes | ||||||
| Anti-islanding protection | Yes | ||||||
| Temperature protection | Yes | ||||||
| Integrated DC switch | Optional | ||||||
| General Data | |||||||
| Dimensions(W*H*D) | 310*543*160 mm | ||||||
| Weight | 11.5kg | ||||||
| Topology | Transformerless | ||||||
| Self consumption | <1W (night) | ||||||
| Operating ambient temperature range | -25~ +60°C | ||||||
| Relative humidity | 0-100% | ||||||
| Ingress protection | IP65 | ||||||
| Cooling concept | Natural convection | ||||||
| Max. operation altitude | 4000m | ||||||
| Grid connection standard |
VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99,
EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727
|
||||||
| Safety/EMC standard | IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3 | ||||||
| Features | |||||||

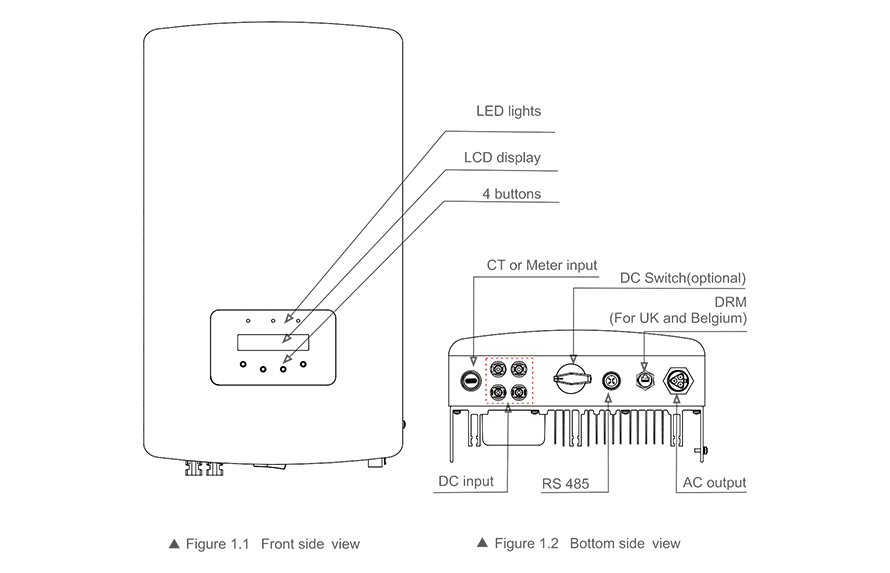

| DC connection | MC4 connector | ||||||
| AC connection | Quick connection plug | ||||||
| Display | LCD | ||||||
| Communication | RS485, Optional: Wi-Fi, GPRS | ||||||
Product Features:
------Max. efficiency 98.1%;
------Super high frequency switching technology;
------Wide voltage range and low startup voltage;
------2 MPPT design with precise MPPT algorithm;
------Intergrated Export Power Manager (EPM);
------Compact and lightweight;
------Friendly and adaptable connection to the grid.
