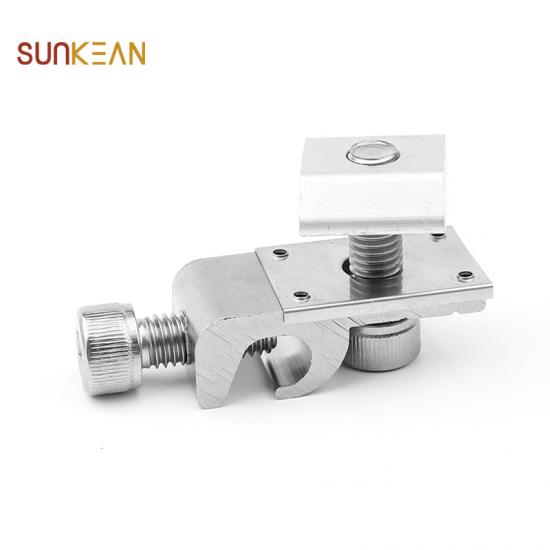

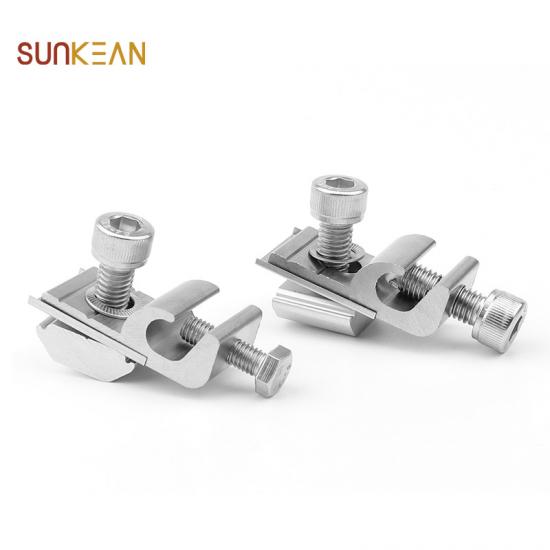

Grounding Lug for pv solar mounting system

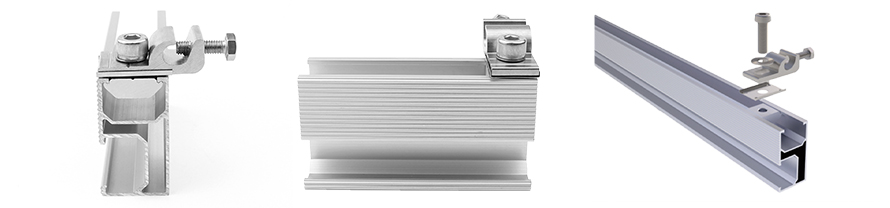

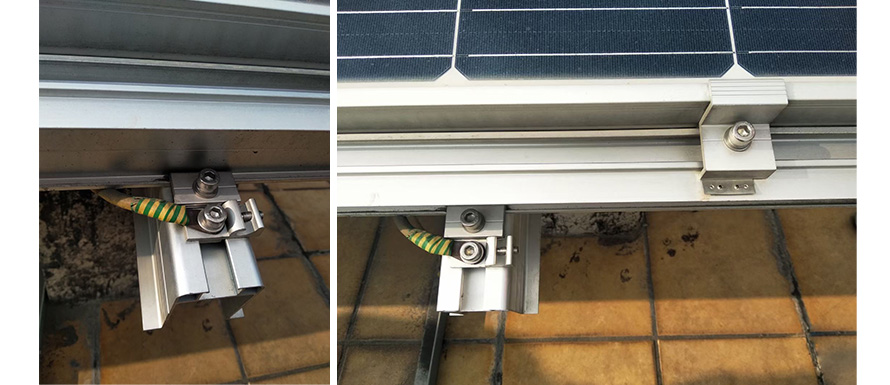

The grounding lugl structure can install and fix one copper wire (14AWG to 6 AWG), or two copper wires (12 AWG to 10 AWG), and can be installed above or on the side of the photovoltaic rail.

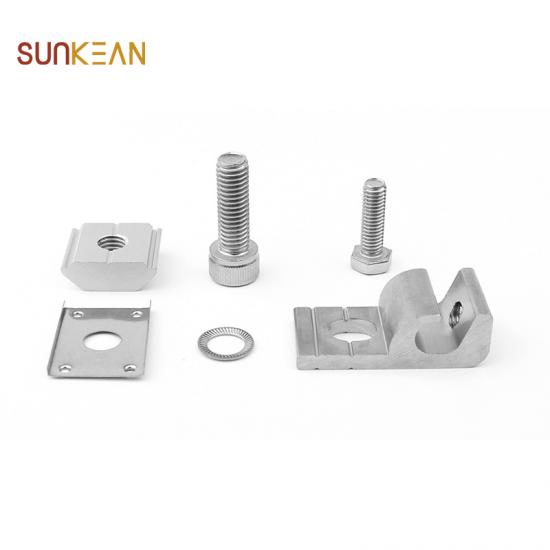

This part is assembled by lightning protection grounding spikes and stainless steel screws. When the screw is tightened, the spikes on the lightning protection grounding spike will pierce the anodized layer of the aluminum alloy rail or the surface of any other conductive metal structure, so that the metal structures in contact with each other form an airtight electrostatic connection, and the photovoltaic The static electricity on the module and the photovoltaic support is conducted to the grounding copper wire and led to the earth.
Product Information:
Aperture(mm)[In]
Matching screw specifications
Model No.
Length(mm)[In]
Width(mm)[In]
High(mm)[In]
40.00 [1.575]
18.00 [0.709]
6.76 [0.266]
M8+M6
M8x25+M6x20
40.00 [1.575]
20.00 [0.787]
8.20 [0.323]
M8+M6
M8x25+M6x20
SKE-LUG-NA8(Aluminum nickel plated)
40.00 [1.575]
20.00 [0.787]
8.20 [0.323]
M8+M8
M8x25+M8x20
Product Features:
1)The product is made of aluminum nickel-plated or copper tin-plated, with strong corrosion resistance.
2)The product is designed and installed conveniently, without too many tools.
3)Multiple grounding conduction installation methods are allowed.
4)A variety of optional supply methods.
a.With or without grounding conductive spike
b.Pre-assembled or without assembly
c.With or without fasteners
5)Comply with AS/NZS1170.2 product standard, refer to ANSI/UL467, UL2703, CSA standard design.
6)Can be customized according to the actual needs of customers.
Application Scenario:
