Photovoltaic single strand copper yellow/green ground electrical wires
Photovoltaic grounding cable is as single-core flexible cable specially designed for grounding of solar photovoltaic system.
Product Information:

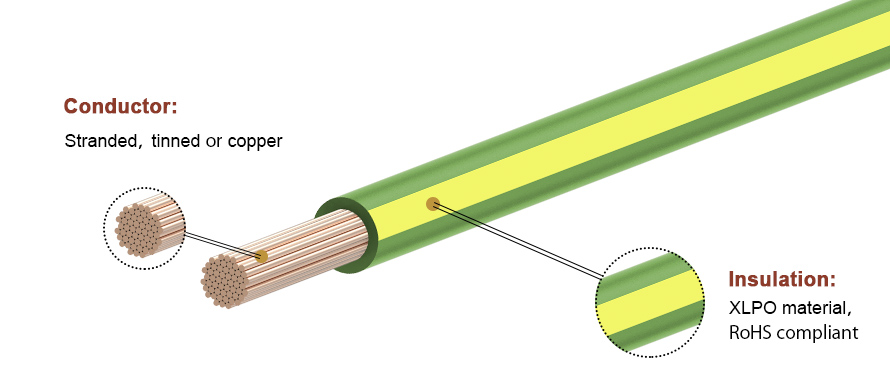

Conductor
Stranded tinned or bare copper
Insulation
XLPO,RoHS compliant
Rated voltage
450/750V
Rated temperature
105°C
Reference Standard
JB/T 10491.2
| Cable Name |
Cross Section (mm²) |
Construction (No./mm) |
Conductor O.D. (mm) |
Insulation O.D. (mm) |
Conductor Resistance Max (Ώ/km) |
Dielectric Strength (VAC,5min) |
| WDZ-RYJ-105 | 1.5 | 30/0.25 | 1.58 | 3.10 | 13.7 | 2500 |
| 2.5 | 49/0.25 | 2.02 | 3.75 | 8.21 | ||
| 4 | 56/0.30 | 2.60 | 4.30 | 5.09 | ||
| 6 | 84/0.30 | 3.42 | 5.20 | 3.39 | ||
| 10 | 84/0.40 | 4.56 | 6.70 | 1.95 | ||
| 16 | 126/0.40 | 5.60 | 7.80 | 1.24 | ||
| 25 | 196/0.40 | 6.95 | 9.60 | 0.795 | ||
| 35 | 276/0.40 | 8.74 | 11.30 | 0.565 | ||
| 50 | 396/0.40 | 10.46 | 13.60 | 0.393 | ||
| 70 | 360/0.50 | 12.50 | 15.60 | 0.277 | ||
| 95 | 475/0.50 | 13.73 | 17.30 | 0.210 | ||
| 120 | 608/0.50 | 15.50 | 19.10 | 0.164 |
Company Profile:
CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, half cut cell solar panel , solar pv mounting structure, fence, Mini inverter for home etc solar products .CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
