Solar PV wiring harnesses for solar panel wiring
The harness can be customized , different solutions meet the requirements of pre-cut or pre-terminated segments of PV wire for connecting modules to string combiners & inverters.
Product Characteristics:
- Easy and quick connection.
-
Compatible with standard PV module connectors and string combiner whips or input fuse holders.
-
Wide range of cable and connector solutions to meet commercial , residential and utility-scale solar projects designs.
-
Water proof.
-
Halogen free, flame retardant , low toxicity.
- Resistance to UV, ozone, fluids, salt and harsh outdoor environments.
- Long lifespan.
|
Insulation material |
PPE/TPE |
Safety degree |
II |
|
Rated current |
30A(without fuse) |
Overvoltage category/Pollution degree |
CATIII/2 |
|
Rated voltage |
1000V&1500VDC |
Flame class |
UL94-V0 |
|
Test voltage |
6kV(50Hz,Imin) |
Ambient temperature range |
-40℃…+90℃(IEC） |
|
Typical contact resistance |
＜0.5 mΩ |
Suitable cable cross sections |
2.5-6sqmm&14-10AWG |
|
Contact material |
Copper,Tin plated |
Upper limiting temperature |
110℃(IEC) |
|
Degree of protection |
IP67 |
|
|
Product details:

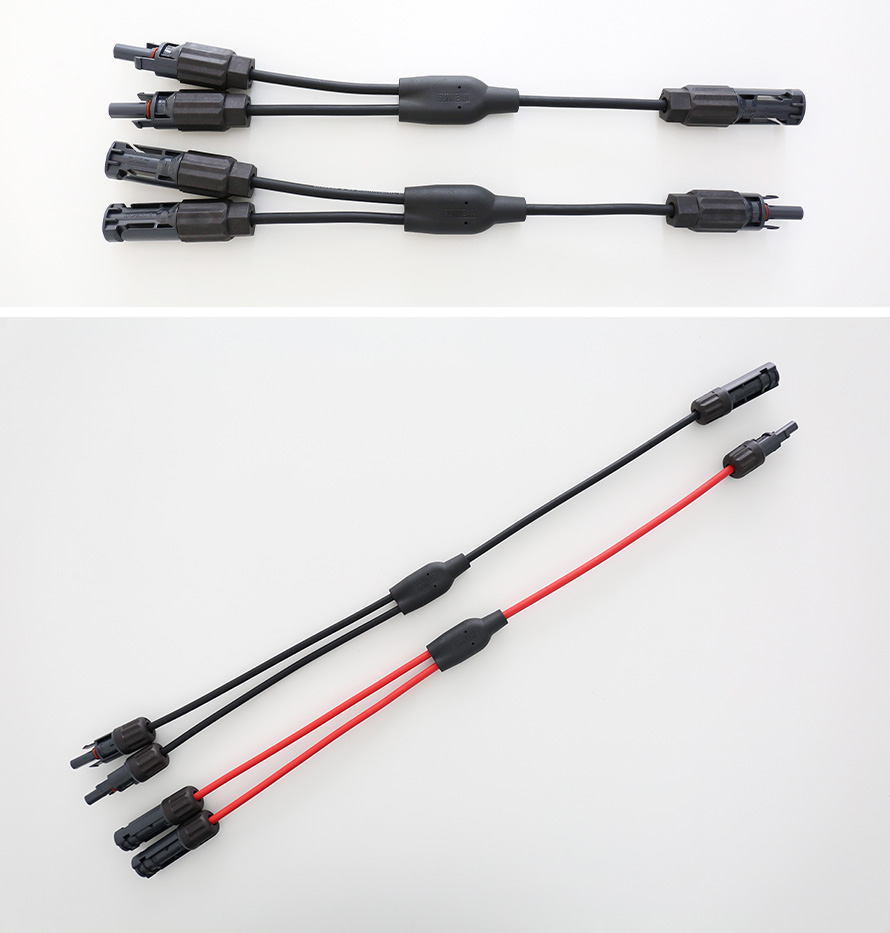

2in1 Type

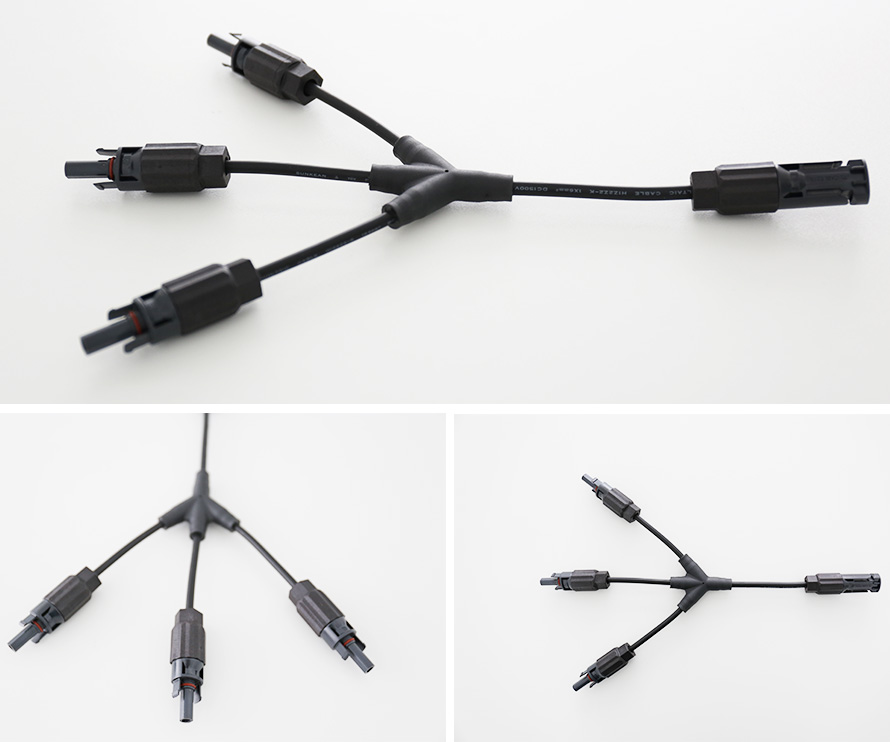

3 in 1 Type

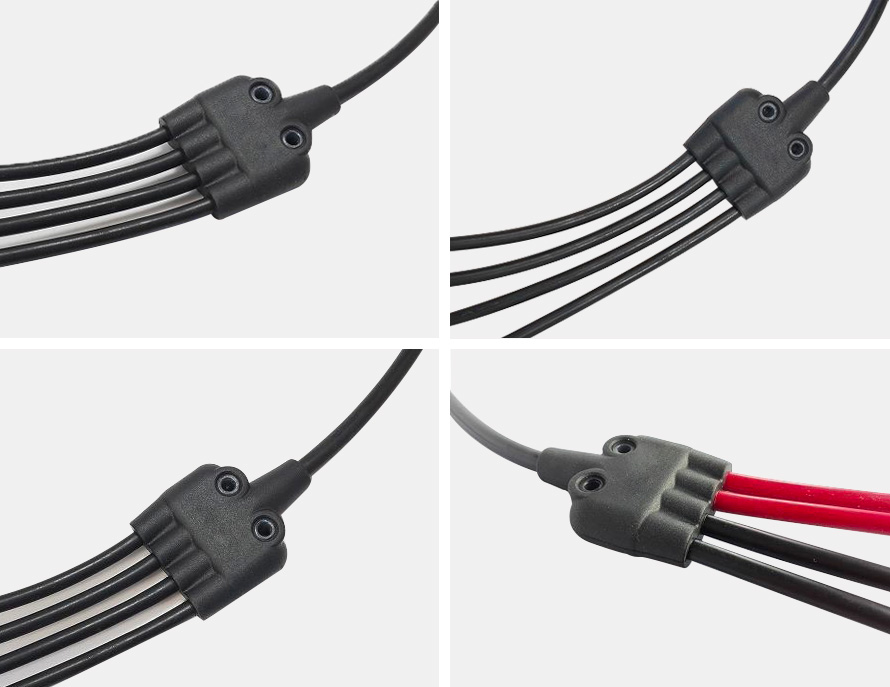

4 in 1 Type

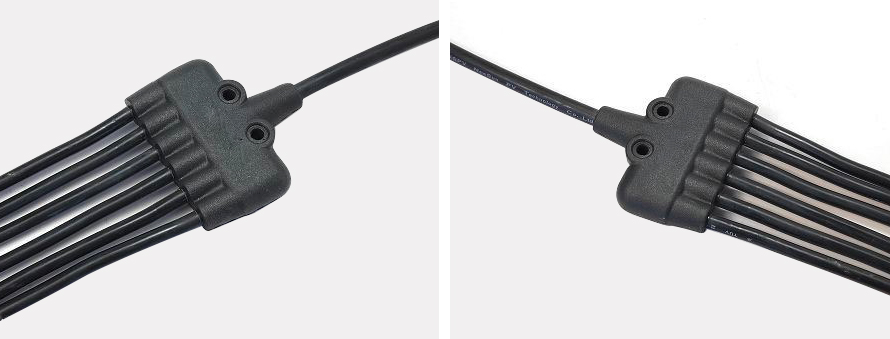

6 in 1 Type

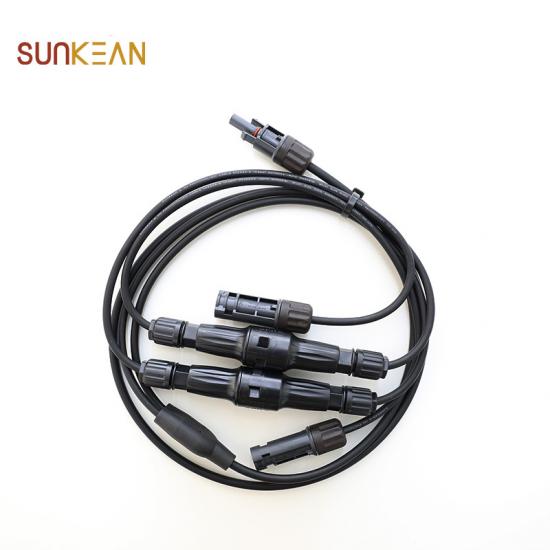

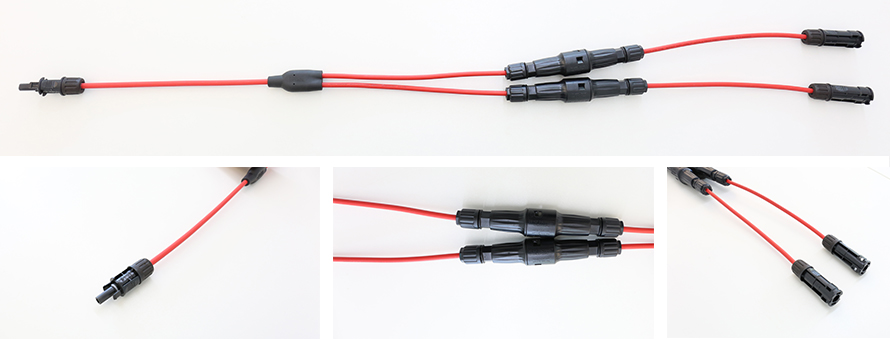

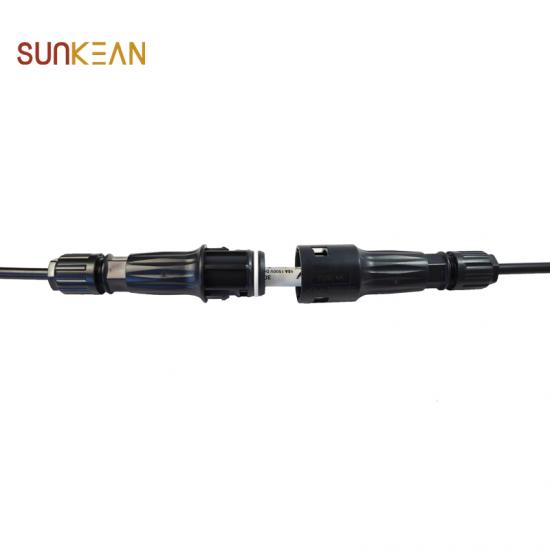

Fuse Connector
Packing & Delivery:
Company Profile:
CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover solar cable connectors, solar cables, solar extension cables , solar energy off grid, lithium ion battery for solar storage, 3 phase off grid solar inverter etc solar products .
CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could it get the sample ?
A: We have Solar PV wiring harnesses in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
