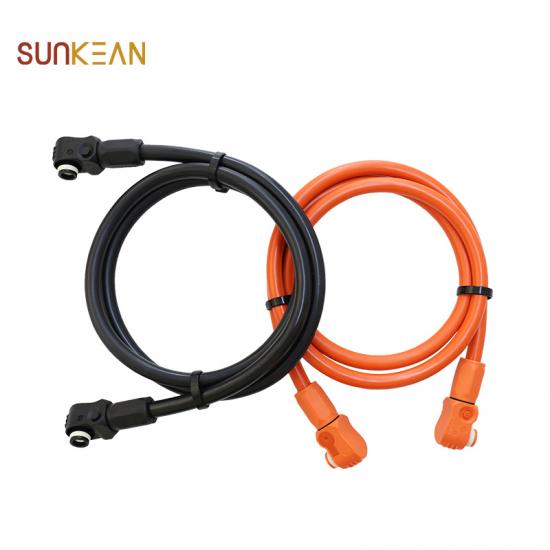

UL758 AWM 10269 cable harness 1000V AC for energy storage system
UL 10269 energy storage harness can be used for connecting wires between battery packs. It adopts stranded tinned copper or bare copper conductors, high Electrical conductivity, and low loss.
Product Description:
The CABLENTIS UL 10269 energy storage cable is a highly flexible cable. Our cables are flame retardant and easy to strip and cut.

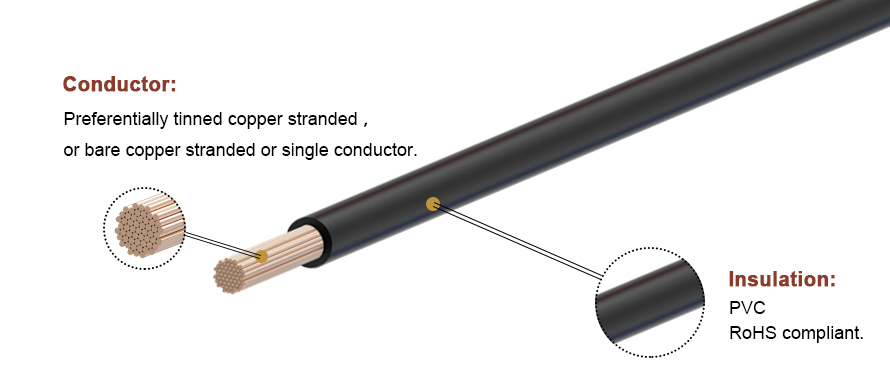

Conductor
Tinned copper stranded, or bare copper stranded or solid conductor
Insulation
Lead free PVC, Passed RoHS
Rated temperature
80°C, 90°C, 105°C
Rated voltage
1000V or 2000V
According to
UL758, UL1581
Flame test
UL VW-1 & CSAFT1
| Cable Name |
Cross Section (AWG) |
Construction (No./mm) |
Conductor Nom O.D. (mm) |
Insulation Nom O.D. (mm) |
Conductor Resistant Max(Ώ/km) |
| UL Style 10269 | 18 | 41/0.16 | 1.18 | 3.78 | 21.80 |
| 16 | 26/0.254 | 1.49 | 3.10 | 14.64 | |
| 14 | 41/0.254 | 1.88 | 3.50 | 9.25 | |
| 12 | 65/0.254 | 2.36 | 4.00 | 5.82 | |
| 10 | 105/0.254 | 3.00 | 4.60 | 3.66 | |
| 9 | 131/0.254 | 3.70 | 5.30 | 2.96 | |
| 8 |
168/0.254 |
4.20 | 6.50 | 2.35 | |
| 7 | 210/0.254 | 4.70 | 7.00 | 1.87 | |
| 6 | 266/0.254 | 5.30 | 8.40 | 1.48 | |
| 5 | 329/0.254 | 5.80 | 9.00 | 1.17 | |
| 4 | 420/0.254 | 6.60 | 9.70 | 0.928 | |
| 3 | 532/0.254 | 7.50 | 10.50 | 0.744 | |
| 2 | 665/0.254 | 8.40 | 11.50 | 0.590 | |
| 1 | 836/0.254 | 9.40 | 13.50 | 0.467 | |
| 1/0 | 1045/0.254 | 10.50 | 14.60 | 0.370 | |
| 2/0 | 1330/0.254 | 11.90 | 16.00 | 0.297 | |
| 3/0 | 1672/0.254 | 13.00 | 17.50 | 0.236 | |
| 4/0 | 2109/0.254 | 14.70 | 19.10 | 0.187 |

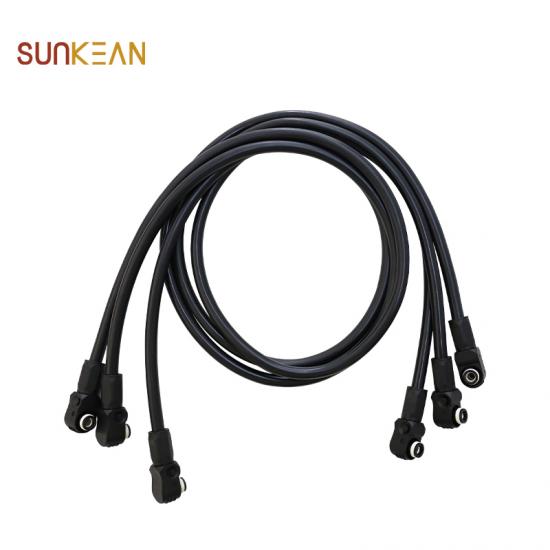

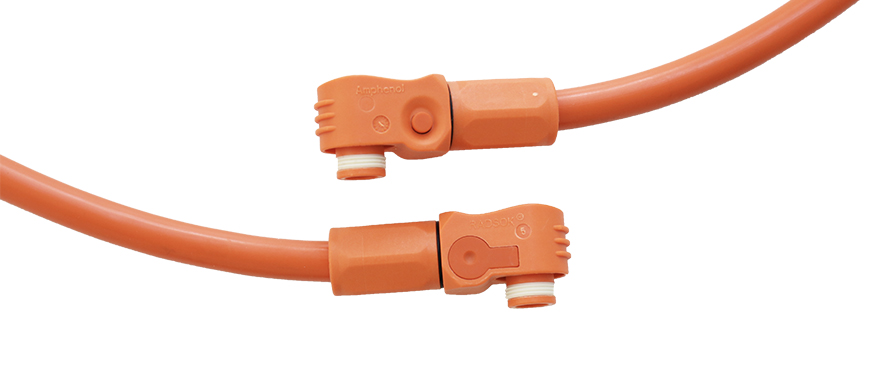

- The connector's design incorporates an integral latching system that ensures a definitive electrical and mechanical connection.
- Connector housings are manufactured with a thermoplastic material that is not only durable but also with excellent dielectric, mechanical properties and meet environmentally RoHS compliant.
- Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.
- UL1977/4128 and TUV 2PfG2740 certified.
*The connector can be customized according to requirements.

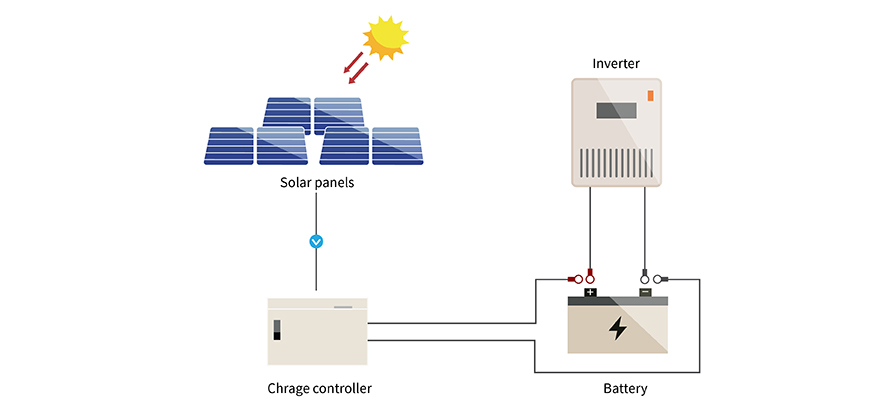

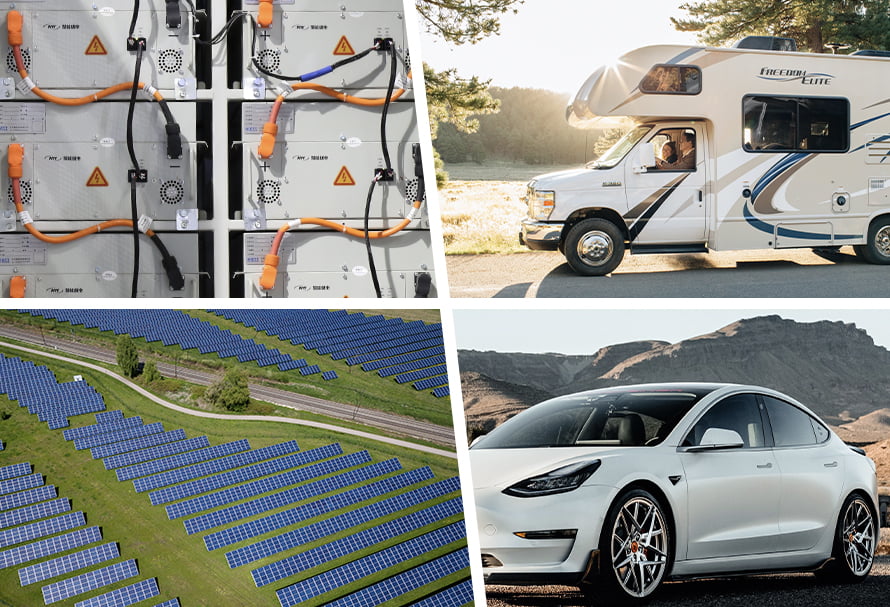

Application:
The cable is suitable for car, automotive, solar, marine, boat, RV, motorcycle, golf cart, lawn/garden equipment or power inverter batteries.
