Tile Roof Mounting system
The tiled roof installation solution is very suitable for installation on tiled roofs that are inclined between 5° and 60°. It can accommodate all framed and frameless solar panels on the market. This complete product series of mounting brackets can be quickly and simply fixed to purlins or rafters without removing any tiles, and without affecting the integrity or function of the tiles themselves.

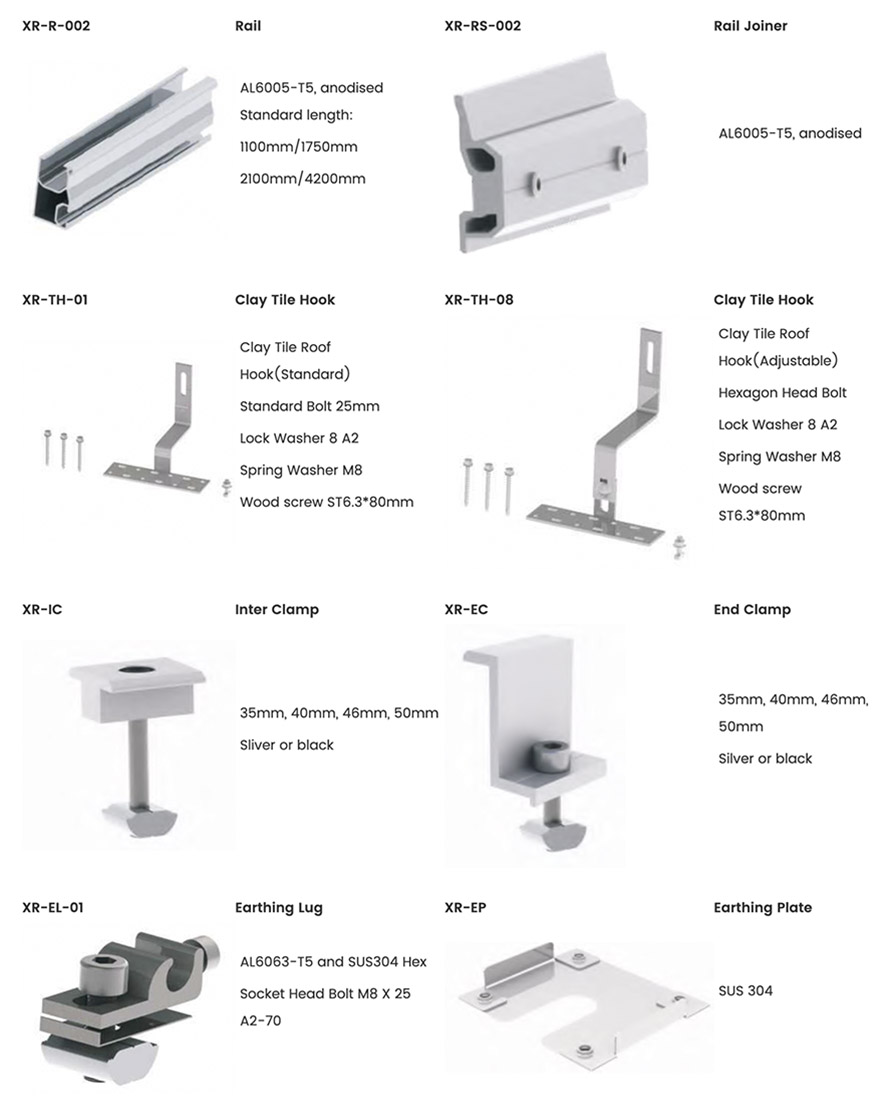

Product Accessories:
Technical Features:
|
Installation Site |
Pitched or tile roof |
|
Wind Load |
88m/s |
|
Snow Load |
70cm |
|
Span range |
0.6m~1.5m |
|
Distance between
modules and roofs
|
About 100mm |
|
Height tolerance |
±15mm |
|
Applicable Module |
Framed or frameless |
|
Module Orientation |
Landscape or portrait |
|
Standards |
AS/NZS1170 MCS012 DIN1055 |
|
Material |
AL6005-T5, anodised |
|
Service Life |
25 Years |
Key Benefits:
------Easy Installation
Planning and highly pre-assembled system making the solution time and cost effective.
------Versatile Application
With a full range of hooks or brackets,Tile Roof Mounting System is suitable for most roofing types.
------Great Compatibility
Design as a universal PV mounting system,Tile Roof is compatible with most of the framed or frameless PV modules on the market.
------High Quality
Strict quality control over materials and finished products ensure optimum strength and long life for your installation.
------10 Years Warranty
The Mount Makers provides a 10 years product warranty for your peace of mind.

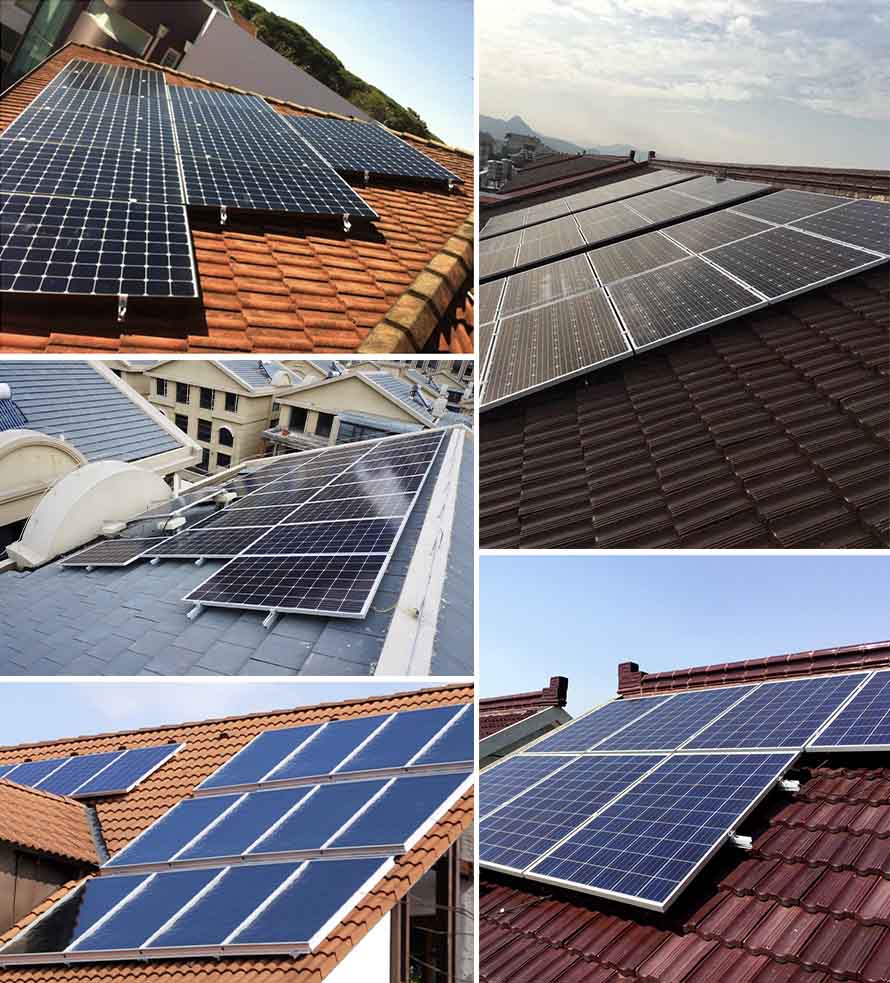

Application Scenario:
Company Profile:
CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, rooftop solar mounting system, single phase full bridge inverter, rooftop solar mounting structure, wire mesh fence, inverters etc solar products .
CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could it get the sample ?
A: We have Roof Mounted Pv System in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q:What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
