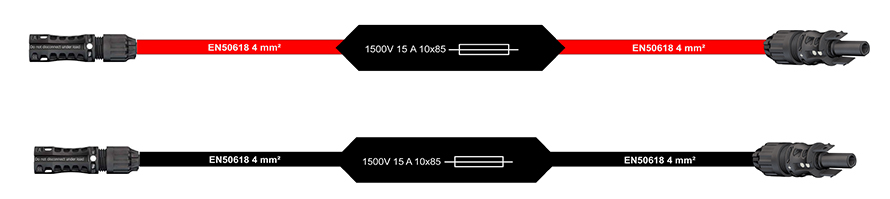

CABLENTIS highly quality molded In-line fuse assembly 1500VDC
CABLENTIS In-line Fuse Assembly is made of high-quality weather-resistant materials and mold-sealed manufacturing process to ensure long-term reliability. They can be installed on-site. Low contact resistance and high current transfer capability ensure high production efficiency. With IP68 waterproof rating, it can be used in a wide operating temperature range.
Product Description:
Solar Cable:

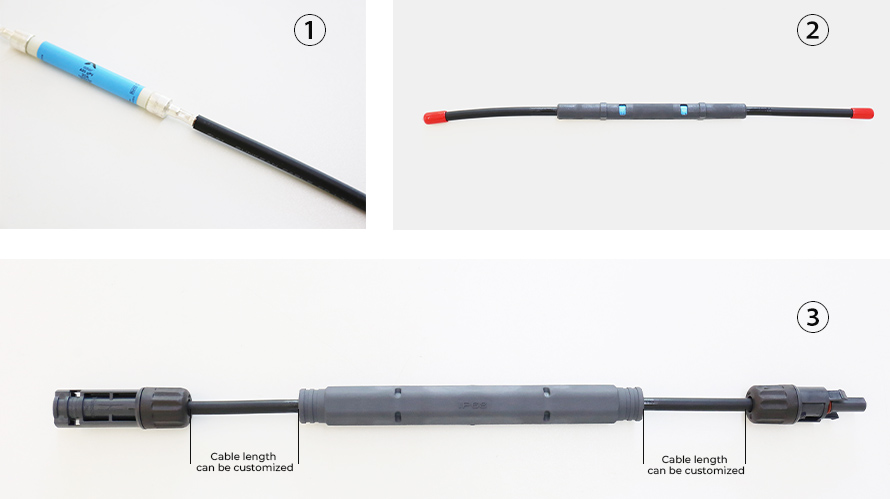

*The solar cable and connector can be customized according to customer requirements.
| Product Type |
Fuse Voltage |
Fuse Current |
Cable Spec |
Solar Connector |
|
S-l/ll:Fuse Holder |
1500VDC |
1-32A (10x85mm) 10-50A (14x85mm) 60A (24x65mm) 70A (24x65mm) |
3.5mm2 25.5mm2 4mm2/2AWG 6mm2/0AWG 10mm2/8AWG 16mm2/6AWG |
Staubli MC4 Staubli MC4-Evo2 Amphenol H4S TE PV4-S Tlian T4 Trina TS4 QC4.10 JinKo PV-JK03M2 Longi PV-LR5 TL-CABLEOTS ...... Optional |
Product Technical Date:
| Nominal Voltage |
1500V DC |
|
Interrupting Ratings |
30kA |
|
Fuse-link |
Standard Ref. to: UL248-19, IEC 60269-6 |
|
Insulation Material |
Special-Hotmelt, UV-stable, IP68 (please take note of connectors IP-protection) |
|
Flame Class |
Self-extinguishing UL94-V1 |
|
Working Environment |
Temperature range: -40°C~+60°C, Humidity range: 5%~ 95% |
|
Over Voltage Category/,Pollution Degree |
CATIII/3 |
|
Safety Degree |
II |
Advantages:
- Hi-tech sealing technology
- Appearance patent
- TPV material
- Easy to install
- Reduce material consumption & labor costs
- IP68
Packing & Delivery:
Company Profile:
CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover solar cable connectors, solar cables, solar extension cables , solar energy off grid, lithium ion battery for solar storage, 3 phase off grid solar inverter etc solar products .
CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ:
Q: How could it get the sample ?
A: We have Solar PV wiring harnesses in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
