Stainless Steel Shield Braid 6mm2 1500V H1Z2Z2-K with rodent protection Solar PV Cable
This stainless steel shield braid 1500V H1Z2Z2-K is suitable for the interconnection of the components of PV systems are characterized by: optimum mechanical properties in a range of operating temperature - 40 to + 90 ° C, high abrasion resistance, tear, UV, ozone , water, flame propagation, low smoke, halogen-free, weather resistance that allows a period equal to the life of the PV system. Moreover, they provide adequate protection against rodents and termites.

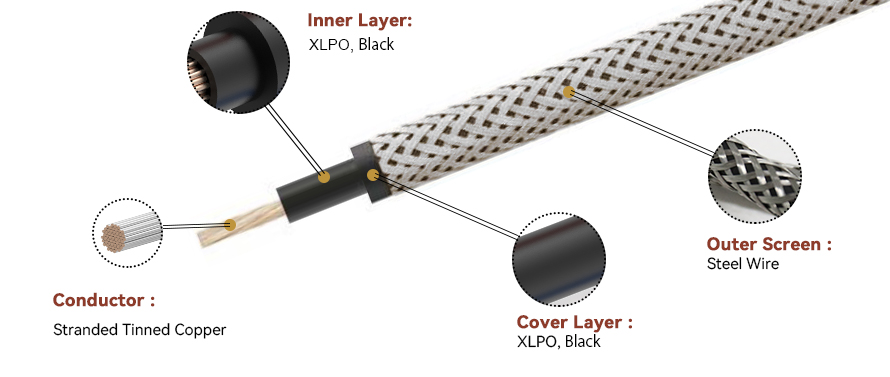

Product Information:
| Conductor | Cross-sectional Area | 6mm2 |
| Material | Stranded Tinned Copper | |
| Conductor Size (mm) |
78/0.3 |
|
| Stranded OD. (mm) | 3.06 | |
| Inner Layer | Material | XLPO |
| Min Thickness (mm) | 0.53 | |
| OD. (mm) |
4.45±0.10 |
|
| Color | Black | |
| Cover Layer | Material | XLPO |
| Min Thickness (mm) | 0.58 | |
| OD. (mm) |
6.10±0.30 |
|
| Color | Black | |
| Out Screen | Material | Steel wire |
| Wire Diamete (mm) | 0.18±0.01 | |
| Knitting Thickness |
70% |
|
| OD.(mm） | 6.90±0.20 |
Advantages:
(1)Electron-beam cross-linked compounds.
(2)UV, ozone, and hydrolysis resistant.
(3) High-temperature resistance, the materials do not melt or flow.
(4)Good cold flexibility.
(5)Very long service life > 25 years at 90°C.
(6)Compatible with all popular connectors.
(7)Anti-termite / anti-rodent protection.
Packing & Delivery:
Application Scenario:
Company Profile:
CABLENTIS is a fast-growing solar company, as well as a turnkey solution provider in China. Products cover PV modules, house solar power systems, solar cable, PV connectors, fences, photovoltaic inverters, etc solar products.
CABLENTIS is committed to providing the best solutions for users, installers, investors, and all stakeholders. We always take responsibility for customers’ demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could I get the sample?
A: We have different kinds of XLPE insulation PV solar cable, photovoltaic cable, and xlpe solar cable in stock, you can require for samples to check our quality. Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What are your terms of payment?
A: Payment<= 1000 USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance, balance before shipment or against B/L.
If you are an end user, we can offer more detailed information to you. Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
