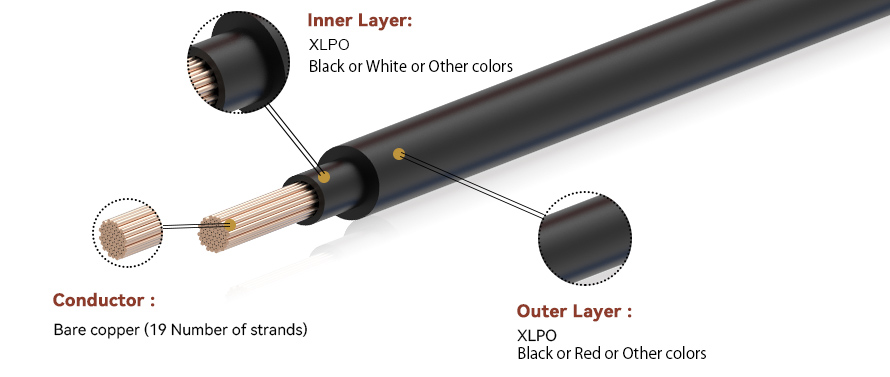

2kV UL4703 PV wire with 19STR bare copper
This cable is certified by UL4703, as a leading solar cable manufacturer in China, we provide a one-stop solution for solar power plant solar cable wiring system.
Product description:
Number of strands
Inner Layer OD.
(mm)
Outer Layer OD.
(mm)
Conductor Resistance Max
(Ώ/KFT, 20°C)
AWG
14
19
4.17
5.7
2.62
12
19
4.68
6.2
1.65
10
19
5.3
6.82
1.04
8
19
6.53
8.05
0.654
6
19
7.54
9.82
0.411
4
19
8.8
11.2
0.259
Technical Data:
|
Nominal voltage |
U=2000V |
|
Voltage test on completed cable |
U=2000V
18~10AWG, 6KV/1Min.
8~2AWG, 7.5KV/1Min. 1~4/0AWG, 9KV/1Min. |
|
Temperature rating |
-40℃~＋90℃ |
| Test under fire conditions |
UL1581 VW-1 |
| Sunlight resistance |
UL2556 |
| Cold bend test | UL854 |
Advantages:
(1)UL certification acc. to UL 4703;
(2)Higher UV-stability;
(3)High flame retardant VW-1;
(4)Water resistance;
(5)Suitable for direct burial
(6)Higher insulation resistance;
(7)Higher mechanical stability;
(8)High and low temperature resistance;
(9)Consecutive meter marking.
Packing & Delivery:
Application Scenario:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, PV Wire used in solar system, solar extension cables ,UL4703 PV Wire, fence, UL4703 1000/2000V solar cable etc solar products .CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
