TC-ER AC cable for mirco Inverter passed UL1277&UL44 certification

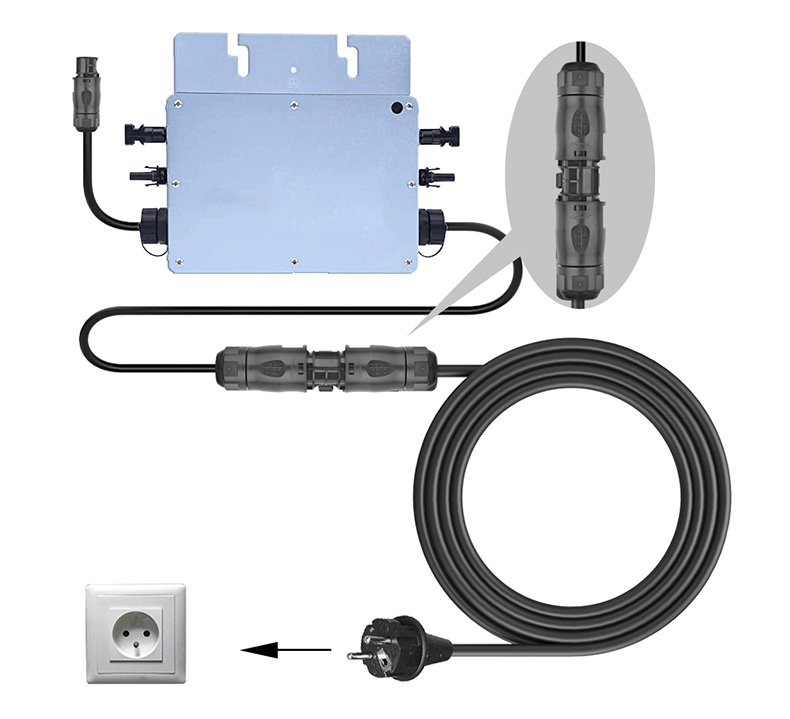

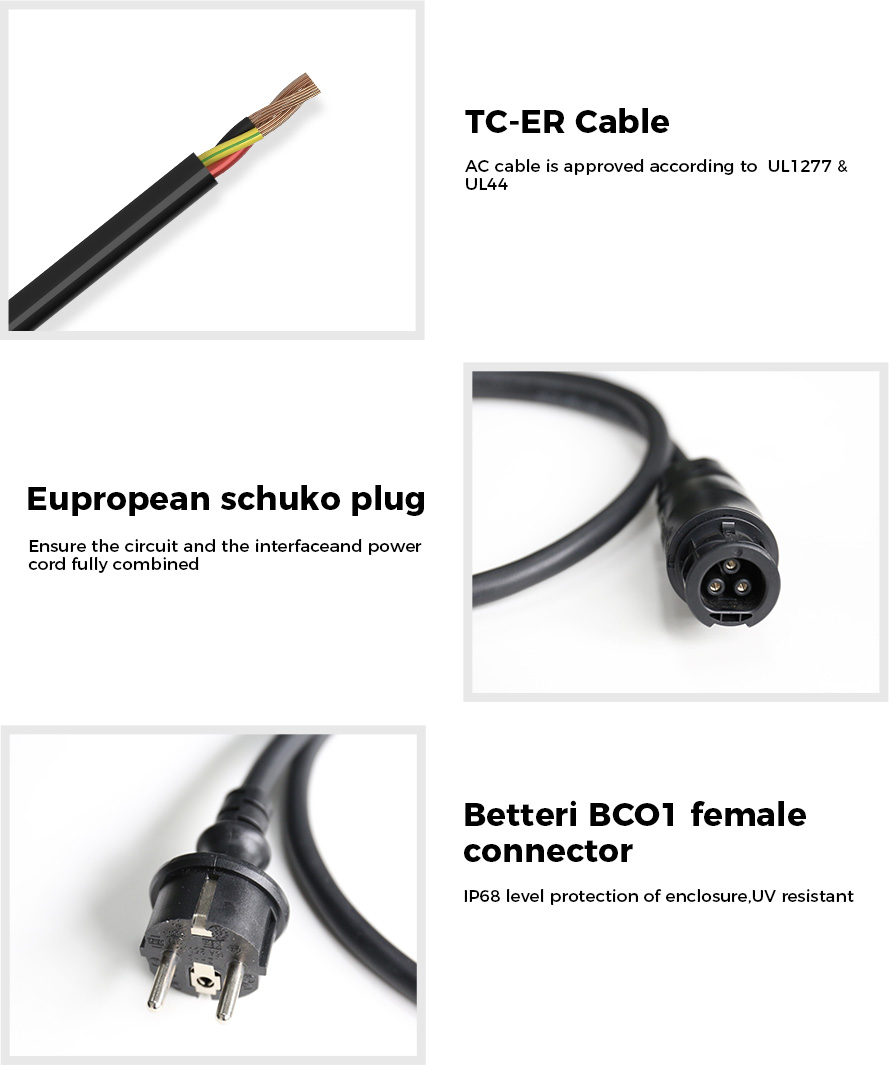

The TC-ER AC cable assembly on one side with mounted Betteri BC01 (female) power connection socket, the other sidewith Schuko plug. It is used for AC connection of the mirco inverter to a Schuko socket.
Product description:
| Application: |
Connecting a microinverter to a Schuko socket |
|
Compatible: |
Single phase microinverter such as made by Deye, Hoymiles, Envertech |
|
Cable length: |
3m, 4m, 5m, 10m, 20m, etc |
| Rated voltage: | 250V AC |
|
Rated current: |
25A |
|
Temperature: |
-30°C to +60°C |
|
Protection: |
IP44(Schuko plug)+IP68 (Betteri plug) |
|
Feature: |
Oil，UV and ozone resistant |
Application Scenario:
Company Profile:
CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover panel solar system, solar cables, solar extension cables , home energy solar systems, Solar power fence, three phase inverters etc solar products .
CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
