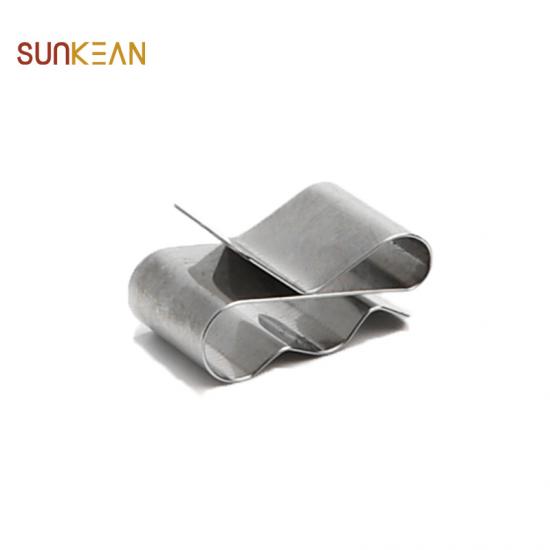

High Quality PV Cable fixing Clips for Panel Frame Thickness 2.0-5.2mm
This special frame clip is made of 301 stainless steel, which has strong corrosion resistance and high elasticity. No special tools are required for installation. It is suitable for installing and fixing photovoltaic cables with a diameter ranging from 5.5mm to 6.8mm. Our company can carry out special customized production according to customer requirements.
Product Information:
Product Name
Solar Cable Clip
10 Years
Installation Site
Solar Panel Frame ( T=2.0-5.2mm)
Model No.
SKE-SCC-SP-2
Material
Stainless Steel 301
Type
For 2x 4mmsq PV Cables
Warranty
SKE-SCC-SP-2(For 2*4mmsq PV Cables) :

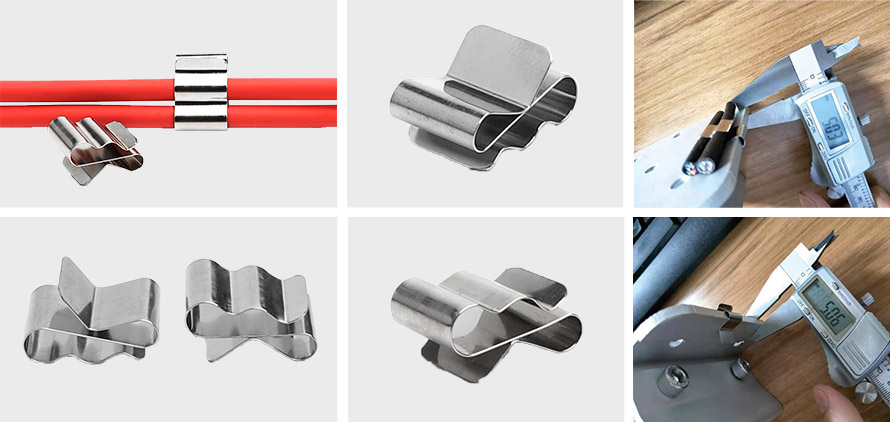

Product Features:
- The product is made of stainless steel 301, with strong corrosion resistance;
- Two-line position;
- Install 180 degrees parallel to the module frame or guide rail purlin;
- It is suitable for installing photovoltaic cables with a fixed diameter ranging from 5.5mm to 6.8mm;
- The special tongue design is convenient for easy installation and removal without tools;
- The burr-free edge can effectively prevent damage to the cable insulation layer;
- Specially designed for thickened frame modules or photovoltaic rails,suitable for installation on the frame or rails of modules with a thickness of 2.0mm to 5.2mm.
Application Scenario:
