Direct Burial Wire AD8 Waterproof Cable 10mm² Single Core EN50618 H1Z2Z2-K CPR Dca Solar Cable
Regardless of their size, PV installations require high-quality cables that provide excellent mechanical properties and superior sunlight resistance for outdoor installations, easy handling, and extra flexibility, as well as maximum water performance.
Product Description:
|
Voltage Rating(Uo/U) |
DC: 1500V |
Test Voltage |
6500V AC |
|
Temperature Rating |
Rated: -40°C to +90°C Max. conductor temp: +120°C Short Circuit: +250°C |
Minimum Bending Radius |
Ø≤12mm 4 x overall diameter Ø>12mm 10 x overall diameter |
|
Protection level against water ingress |
AD7 | CPR | Cca-s1,d0,a2 |
|
Cross Section
(mm²）
|
Construction
(No./mm)
|
Insulation O.D.
(mm)
|
Cable O.D.
(mm)
|
Conductor resistance
Max (Ώ/km)
|
| 10.0 |
77/0.40 |
5.50 |
7.20 |
1.85 |
Certifications:
CABLENTIS Direct Burial Wire AD8 Waterproof Cable 10mm² Single Core EN50618 H1Z2Z2-K CPR Dca Solar Cable Obtained CPR(Dca) certification and passed direct burial test report and AD8 waterproof test.

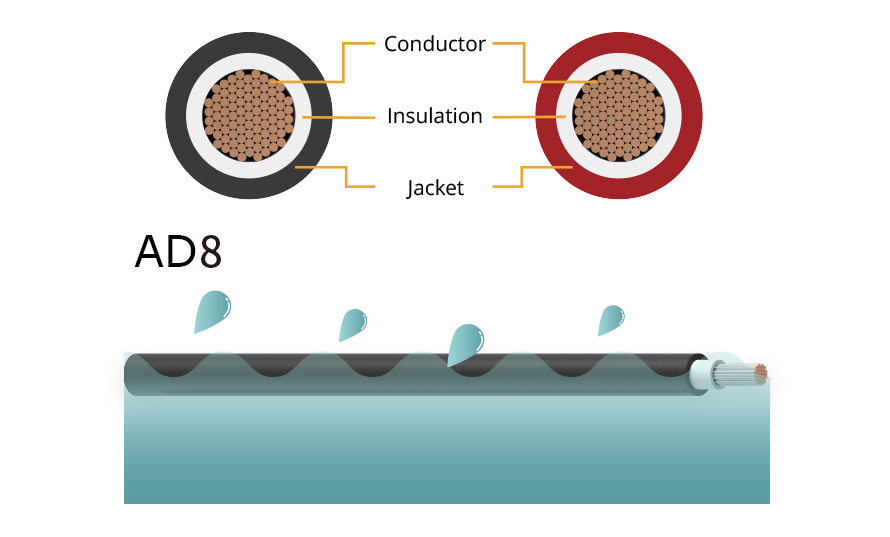

The direct-burial wire is a kind of communication or transmission cable which is specially designed to be buried under the ground without any other cover, sheath, or duct to protect it. Direct burial wire's best feature is that it can be buried directly in the ground and does not need to be sleeved in a pipe.
Cables with protection class AD8 can withstand water immersion for an indefinite period. If the cables in the solar power installation will not be immersed in water for long periods, AD7 cables should be selected.
CABLENTIS CPR(Dca) certification TUV AD8 IPX7 Test Report Direct Burial Test Report
Packing & Delivery:
Application Scenario:
Company Profile:
CABLENTIS is a fast-growing solar company, as well as a turnkey solution provider in China. Products cover panel solar systems, solar cables, solar extension cables, home energy solar systems, Solar power fences, three-phase inverters, etc solar products.
CABLENTIS is committed to providing the best solutions for users, installers, investors, and all stakeholders. We always take responsibility for customers’ demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could I get the sample?
A: We have different kinds of XLPE insulation PV solar cable, photovoltaic cable, and xlpe solar cable in stock, you can require samples to check our quality. Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What are your terms of payment?
A: Payment<= 1000 USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance, balance before shipment or against B/L.
If you are an end user, we can offer more detailed information to you. Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
