CPR-certified CPR Cca Fireproof 10mm² Single Core EN 50618 H1Z2Z2-K AD7 Water-resistant Solar Cable
Regardless of their size, PV installations require high-quality cables that provide excellent mechanical properties and superior sunlight resistance for outdoor installations, easy handling, and extra flexibility, as well as maximum water performance.
Product Description:
|
Voltage Rating(Uo/U) |
DC: 1500V |
Test Voltage |
6500V AC |
|
Temperature Rating |
Rated: -40°C to +90°C Max. conductor temp: +120°C Short Circuit: +250°C |
Minimum Bending Radius |
Ø≤12mm 4 x overall diameter Ø>12mm 10 x overall diameter |
|
Protection level against water ingress |
AD7 | CPR | Cca-s1,d0,a2 |
|
Cross Section
(mm²）
|
Construction
(No./mm)
|
Insulation O.D.
(mm)
|
Cable O.D.
(mm)
|
Conductor resistance
Max (Ώ/km)
|
| 10 |
77/0.40 |
5.50 |
7.20 |
1.85 |
Certifications:
CABLENTIS CPR-certified CPR Cca Fireproof 10mm² Single Core EN 50618 H1Z2Z2-K AD7 Water-resistant Solar Cable Obtained CPR(Cca) certification and passed AD7 waterproof test.
CPR comes from the abbreviation of "Construction Product Regulation". If a cable has been tested for its own fireproof performance and meets all the commonly used limits, it is categorized in the CPR classes from ACA to FCA according to certain grading criteria. CPR(Cca) represents higher flame retardance than CPR(Dca).
PV cables with protection class AD7 can withstand short-term immersion in water. According to EN 50618, solar cables type H1Z2Z2-K are protected up to protection class AD7, i.e. against short-term immersion in water.

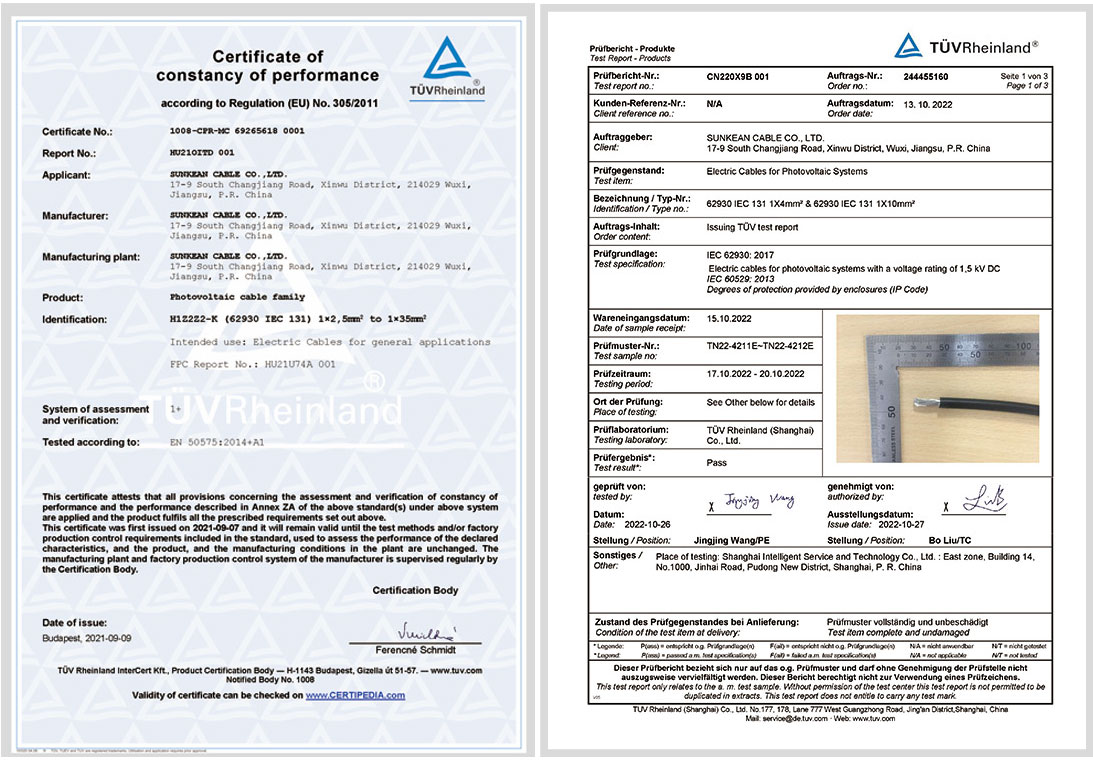

CABLENTIS CPR(Cca) certification TUV AD7 IPX Test Report
Packing & Delivery:
Application Scenario:
Company Profile:
CABLENTIS is a fast-growing solar company, as well as a turnkey solution provider in China. Products cover panel solar systems, solar cables, solar extension cables, home energy solar systems, Solar power fences, three-phase inverters, etc solar products.
CABLENTIS is committed to providing the best solutions for users, installers, investors, and all stakeholders. We always take responsibility for customers’ demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could I get the sample?
A: We have different kinds of XLPE insulation PV solar cable, photovoltaic cable, and xlpe solar cable in stock, you can require samples to check our quality. Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What are your terms of payment?
A: Payment<= 1000 USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance, balance before shipment or against B/L.
If you are an end user, we can offer more detailed information to you. Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
