700W 710W HJT cell MBB Half-cut Bifacial Solar Module
This 700-720W bifacial solar panel adopt N-type HJT technology, and the HJT modules adopt the production technology of low-temperature ribbon and low-temperature flux, granting reliability and performance comparable to that of PERC.
Product Characteristics:
| Mechanical Characteristics | |
|
Cell Type |
HJT 210 x 105mm |
| Number of cells | 132pcs(6x22) |

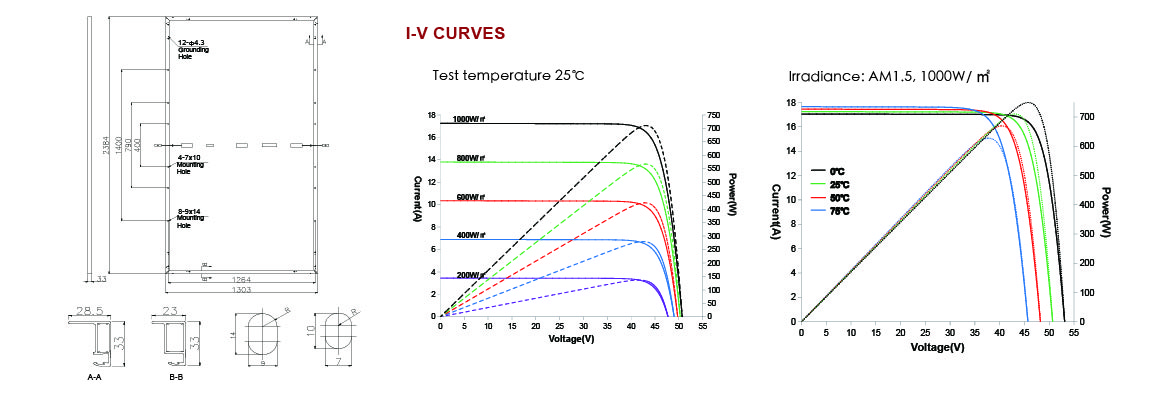

| Dimensions |
2384 x 1303 x 33 mm |
|
Weight |
38.3kg |
|
Frame |
Anodized Aluminium |
| J-Box |
IP68, 3 bypass diodes |
|
Cable, Length |
4mm2 , 300m |
| Packaging | 33 pcs/pallet, 594pcs per 40'HC |
Electrical Characteristics @ STC:
Maximum Power(Pmax/W)
Open Circuit Voltage (Voc/V)
Short Circuit Current (Isc/A)
Voltage at Maximum Power (Vmp/V)
Current at Maximum Power (Imp/A)
Module Efficiency(%)
Module Type
SKE700S9T-132
SKE705S9T-132
SKE710S9T-132
SKE715S9T-132
SKE720S9T-132
700
705
710
715
720
50.31
50.51
50.71
50.91
51.11
17.21
17.23
17.25
17.27
17.29
43.00
43.23
43.46
43.68
43.91
16.28
16.31
16.34
16.37
16.40
22.54
22.70
22.86
23.02
23.18
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
* Measurement Tolerance(士3.0%)
Integrated Power @ STC (Refrence to 690W front):
| Power Gains | 5% | 10% | 15% | 20% | 25% |
| Max. Power Output Pmax (W) | 746 | 781 | 815 | 850 | 886 |
|
Max. Power Voltage Vmp (V) |
43.46 | 43.46 | 43.46 | 43.46 | 43.46 |
| Max. Power Current Imp (A) | 17.16 | 17.97 | 18.79 | 19.61 | 20.43 |
| Open Circuit Voltage Voc (V) | 50.71 | 50.71 | 50.81 | 50.81 | 50.81 |
| Short Circuit Current Isc (A) | 18.11 | 18.98 | 19.84 | 20.70 | 21.56 |
Operating Parameters:
|
Operational Temperature |
-40°C~+85°C |
|
Power Output Tolerance |
0~3% |
|
Maximum System Voltage |
DC1500V |
|
Maximum Series Fuse Rating |
35A |
|
Bifaciality |
90士5% |
| NOCT |
45°C |
|
Fire Rating |
Class A |
Mechanical Loading:
|
Front Side Maximum Static Loading |
5400Pa |
|
Rear Side Maximum Static Loading |
2400Pa |
|
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
Temperature Ratings(STC):
|
Temperature Coefficient of Isc |
+0.047%/°C |
|
Temperature Coefficient of Voc |
-0.220%/°C |
|
Temperature Coefficient of Pmax |
-0.240%/°C |
Product Features:
-
N-type HJT technology for lower LCOE
The lower temperature coefficient and better low irradiance performance of HJT technology can effectively reduce LCOE.
- Fire class A, harsh environment adaptability
The back of the dual-glass module adopts high transparent glass, which can adapt to all kinds of harsh environments, and the fire rating can reach Class A.
- 30-year power warranty
The average life of dual-glass modules is 30 years, 5 years longer than that of single-glass modules.
- Double-sided power generation, higher income
The dual-glass module has a bifaciality up to 90% and a power generation gain of 7%-30% on the backside.

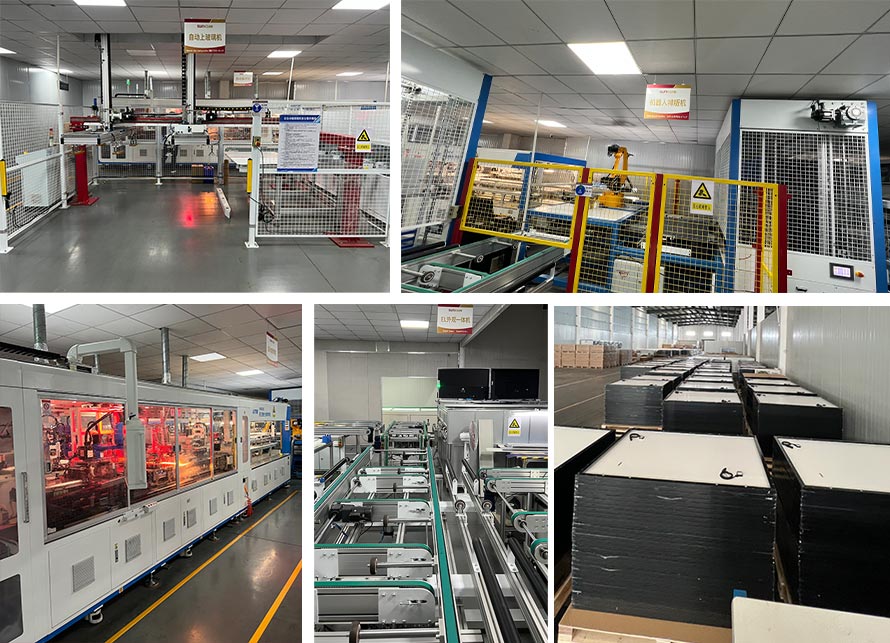

Our Factory：
Packing & Delivery:

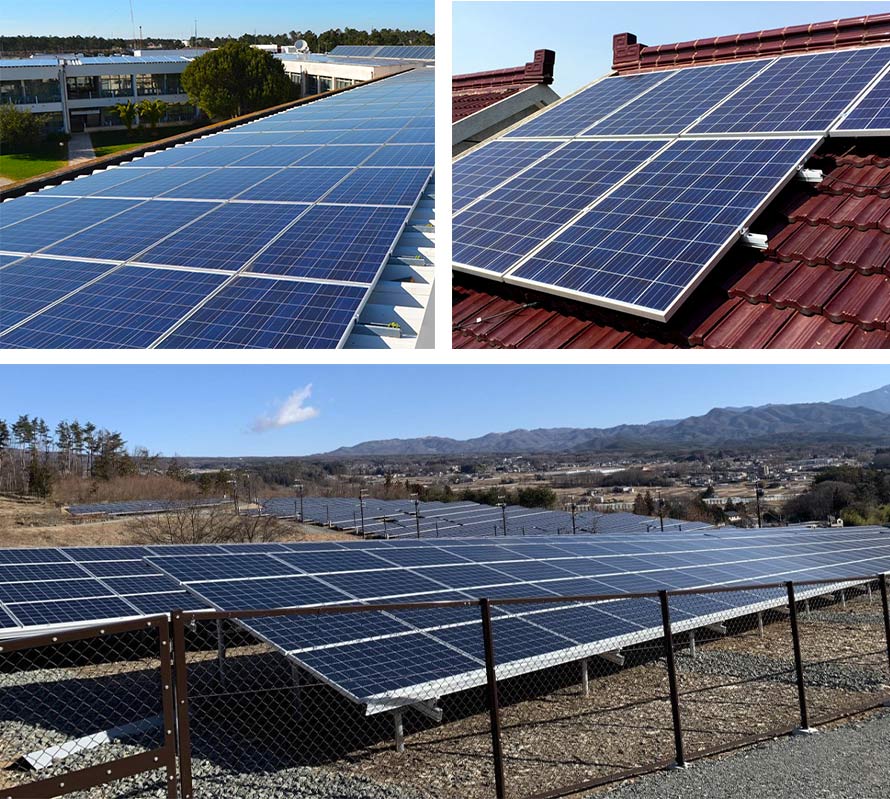

Application:
