680W 690W HJT MBB Half-cut Bifacial Solar Panel
First year degradation of these 680W-700W HJT solar panel is 1% annual degradation is -0.25%. HJT modules can guarantee power generation rate of no less than 93%in 25 years.
Product Characteristics:
| Mechanical Characteristics | |
|
Cell Type |
HJT 210 x 105mm |
| Number of cells | 132pcs(6x22) |
| Dimensions |
2384 x 1303 x 33 mm |
|
Weight |
38.3kg |
|
Frame |
Anodized Aluminium |
| J-Box |
IP68, 3 bypass diodes |
|
Cable, Length |
4mm2 , 300m |
| Packaging | 33 pcs/pallet, 594pcs per 40'HC |
Electrical Characteristics @ STC:
Maximum Power(Pmax/W)
Open Circuit Voltage (Voc/V)
Short Circuit Current (Isc/A)
Voltage at Maximum Power (Vmp/V)
Current at Maximum Power (Imp/A)
Module Efficiency(%)
Module Type
SKE680S9T-132
SKE685S9T-132
SKE690S9T-132
SKE695S9T-132
SKE700S9T-132
680
685
690
695
700
49.51
49.71
49.91
50.11
50.31
17.13
17.15
17.17
17.19
17.21
42.08
42.32
42.55
42.77
43.00
16.16
16.19
16.22
16.25
16.28
21.89
22.06
22.22
22.37
22.54
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
* Measurement Tolerance(士3.0%)
Integrated Power @ STC (Refrence to 690W front):
| Power Gains | 5% | 10% | 15% | 20% | 25% |
| Max. Power Output Pmax (W) | 725 | 759 | 792 | 826 | 861 |
|
Max. Power Voltage Vmp (V) |
42.55 | 42.55 | 42.45 | 42.45 | 42.45 |
| Max. Power Current Imp (A) | 17.03 | 17.84 | 18.65 | 19.46 | 20.28 |
| Open Circuit Voltage Voc (V) | 49.91 | 49.91 | 50.01 | 50.01 | 50.01 |
| Short Circuit Current Isc (A) | 18.03 | 18.89 | 19.75 | 20.60 | 21.46 |
Operating Parameters:
|
Operational Temperature |
-40°C~+85°C |
|
Power Output Tolerance |
0~3% |
|
Maximum System Voltage |
DC1500V |
|
Maximum Series Fuse Rating |
35A |
|
Bifaciality |
90士5% |
| NOCT |
45°C |
|
Fire Rating |
Class A |
Mechanical Loading:
|
Front Side Maximum Static Loading |
5400Pa |
|
Rear Side Maximum Static Loading |
2400Pa |
|
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
Temperature Ratings(STC):
|
Temperature Coefficient of Isc |
+0.047%/°C |
|
Temperature Coefficient of Voc |
-0.220%/°C |
|
Temperature Coefficient of Pmax |
-0.240%/°C |
Product Features:
-
N-type HJT technology for lower LCOE
The lower temperature coefficient and better low irradiance performance of HJT technology can effectively reduce LCOE.
- Fire class A, harsh environment adaptability
The back of the dual-glass module adopts high transparent glass, which can adapt to all kinds of harsh environments, and the fire rating can reach Class A.
- 30-year power warranty
The average life of dual-glass modules is 30 years, 5 years longer than that of single-glass modules.
- Double-sided power generation, higher income
The dual-glass module has a bifaciality up to 90% and a power generation gain of 7%-30% on the backside.
Our Factory：
Packing & Delivery:

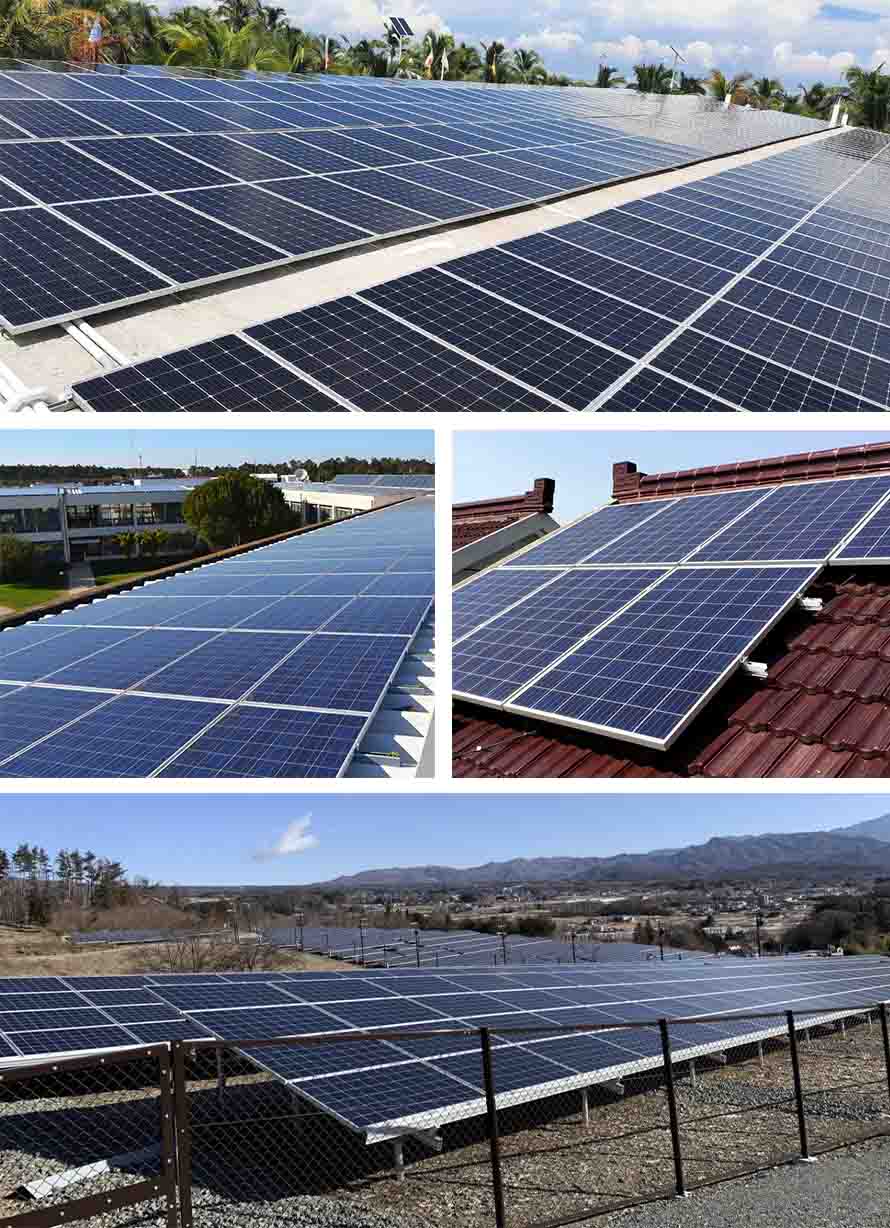

Application:
