Flexible solar panel

Industrial 430W light weight and flexible solar panel

430W flexible solar panel ultra-light、fast-installation、aesthetic and durable.

Item NO.:
SKE430F-12X12UW
Lead Time:
1-2 weeks
Product Orgin:
CHINA
Shipping Port:
SHANGHAI , CHINA
Payment:
T/T ， L/C
MOQ:
1000Watts
goods stock:
1

Inquiry now

Product Detail

Industrial 430W light weight and flexible solar panel

430W flexible solar panel is frameless and has the most flexibility. It is suited to many innovative cross-market applications.

Electrical Characteristics:

Module Type	SKE430F-12X12UW
Testing Condition	STC	NMOT
Maximum Power (P_max)	430	325.1
Maximum Power Voltage (V_mp)	42.0	38.8
Maximum Power Current (I_mp)	10.24	8.38
Open Circuit Voltage(V_oc)	49.8	46.8
Short Circuit Current(I_sc)	10.74	8.69
Module Efficiency (%)	19.3%
Operating Temperature	-40°C to 85°C
Maximum System Voltage	1500V DC (IEC)
Maximum Series Fuse Rating	20A
Application Class	Class A
Power Tolerance	0/+5 W

*STC: Irradiance 1000W/m² , Cell temperature 25℃, AM=1.5.

Tolerances of Pmax , Voc and Isc are within ±5%

*NMOT: Irradiance 800W/m² , Ambient temperature 20℃,AM=1.5, Wind speed 1 m/s.

Mechanical Characteristics:

Solar Cell	Monocrystalline silicon (166mm half cell)
No. of Cells	144(12x12)
Module Dimensions	2054×1084×2 mm
Weight	6.3 kg
Backsheet	White
Frame	Frameless
J-box	IP 68 rated
Output Cables	Photovoltaic technology cable 4.0 mm² , (+)450 / (-)450 mm
Connector	MC4 compatible

430W flexible solar panel Features:

-----Ultra-light: Glass free module weighs 6.3kg, 70% lighter than conventional glass modules.

-----Fast-lnstallation: Through"Quick- Bonding" installation requires no penetration, reduces time on roof by 40% and eliminates the use of mounting hardware.

-----Aesthetic:Seamless integration with underlying installation surface.

-----Durable: Pass the same durability tests as conventional glass modules, also passed PID, salt mist and ammonia corrosion tests.

Solar panel production process:

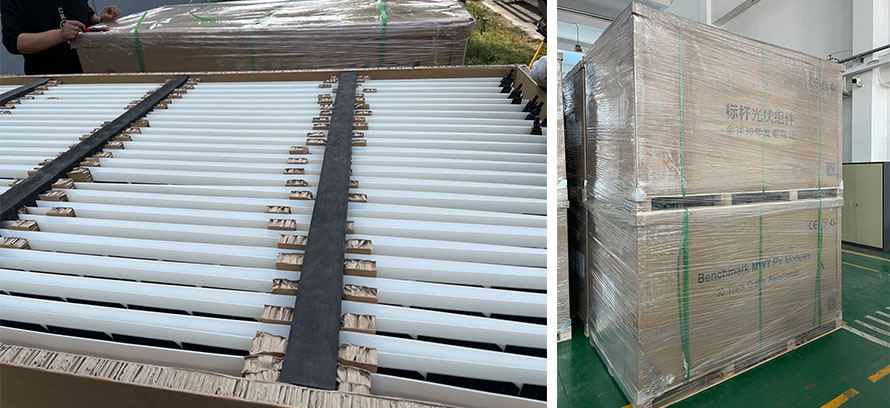

Packing & Delivery:

Half Cell Pv Modules

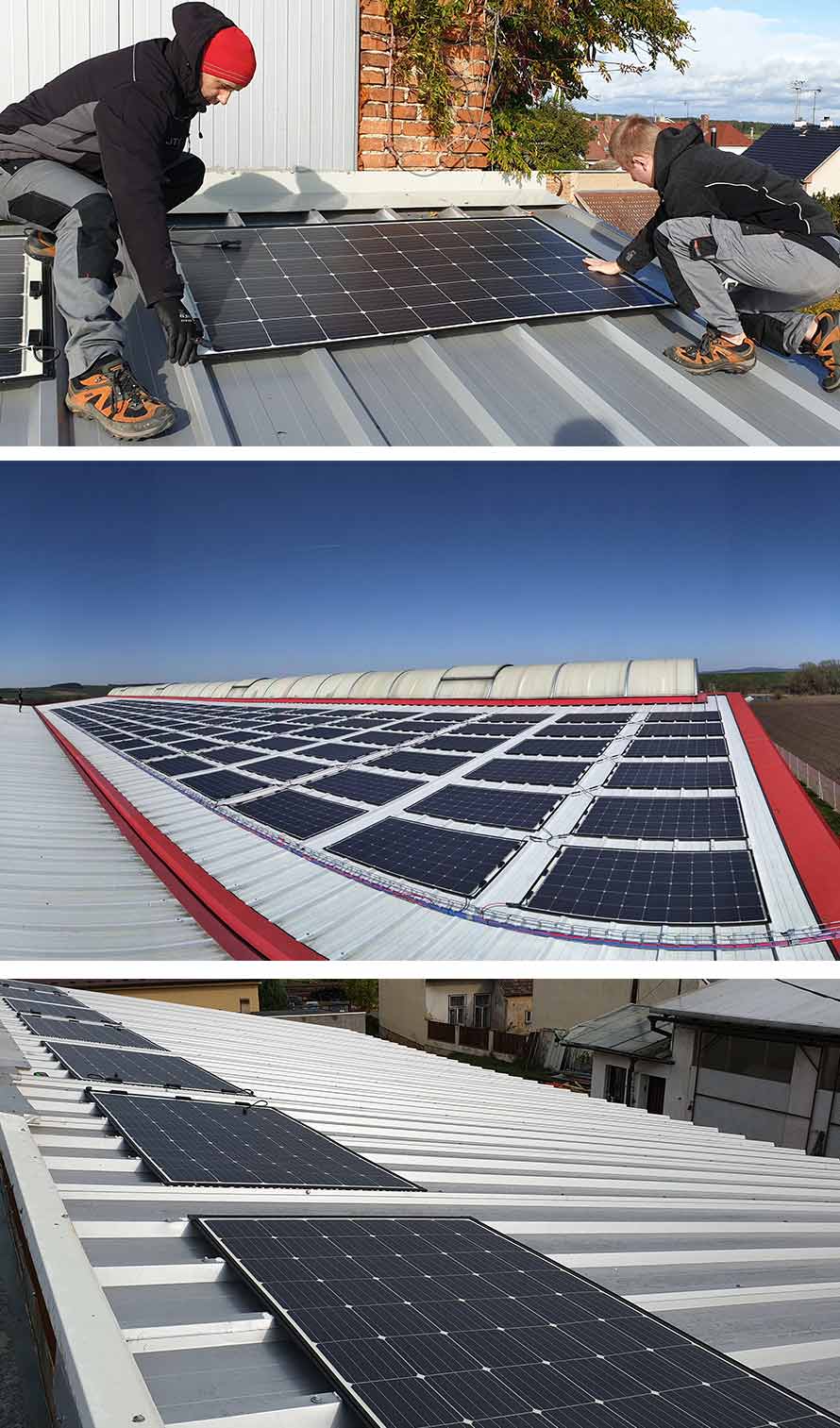

Application Scenario:

Company Profile:
