575W mono PV Modules 182mm Cell Size 144 Cells solar panel
The 575W pv module has higher power and more reliability, using HPBC cell technology, suitable for ultra-large power plants.
Product Characteristics:

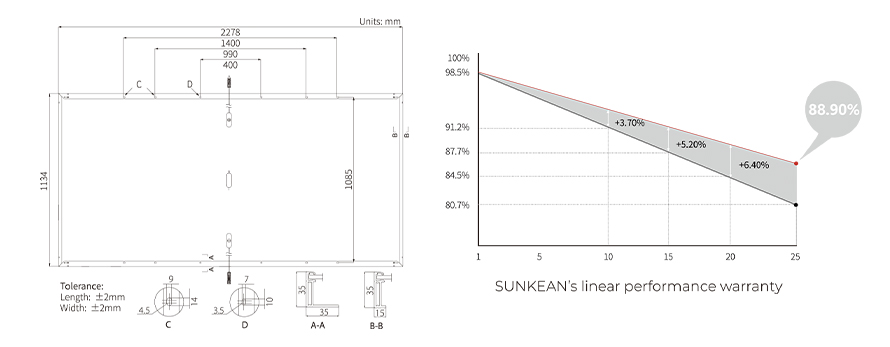

| Mechanical Characteristics | |
|
Cell arrangement |
144 (6x24) |
| Dimensions |
2278 x 1134 x 35 mm |
|
Weight |
27.5kg |
|
Glass |
Single glass, 3.2mm coated tempered glass |
|
Frame |
Anodized aluminium alloy |
| J-Box |
IP68, 3 diodes |
|
Output Cable |
4mm2 ,+400,-200mm/±1400mm (Length can be customized) |
| Packaging | 31 pcs per pallet/ 155pcs per 20'GP/ 620pcs per 40'HC |
Electrical Characteristics:
Maximum Power(Pmax/W)
Open Circuit Voltage (Voc/V)
Short Circuit Current (Isc/A)
Voltage at Maximum Power (Vmp/V)
Current at Maximum Power (Imp/A)
Module Efficiency(%)
Module Type
SKE575S9-144
Testing Condition
STC
NOCT
575
430
52.06
48.88
14.14
11.42
43.91
40.07
13.10
10.72
22.3
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.
Operating Parameters:
|
Operational Temperature |
-40°C~+85°C |
|
Power Output Tolerance |
0~3% |
|
Voc and Isc Tolerance |
土3% |
|
Maximum System Voltage |
DC1500V(IEC/UL) |
|
Maximum Series Fuse Rating |
30A |
|
Nominal Operating Cell Temperature |
45士2°C |
|
Protection Class |
Class Il |
|
Fire Rating |
UL type 1 or 2 IEC Class C |
Mechanical Loading:
|
Front Side Maximum Static Loading |
5400Pa |
|
Rear Side Maximum Static Loading |
2400Pa |
|
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
Temperature Ratings(STC):
|
Temperature Coefficient of Isc |
+0.050%/°C |
|
Temperature Coefficient of Voc |
-0.230%/°C |
|
Temperature Coefficient of Pmax |
-0.290%/°C |
Product Features:
- Based on M10 wafer, best choice for ultra-large power plants
-
Excellent outdoor power generation performance
- High module quality ensures long-term reliability

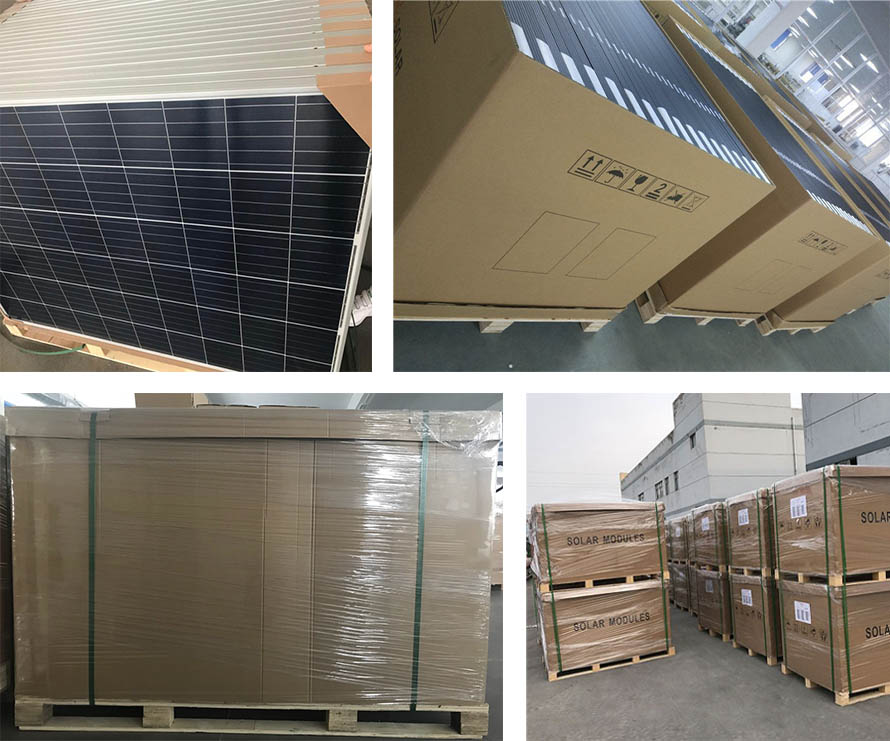

Packing & Delivery:

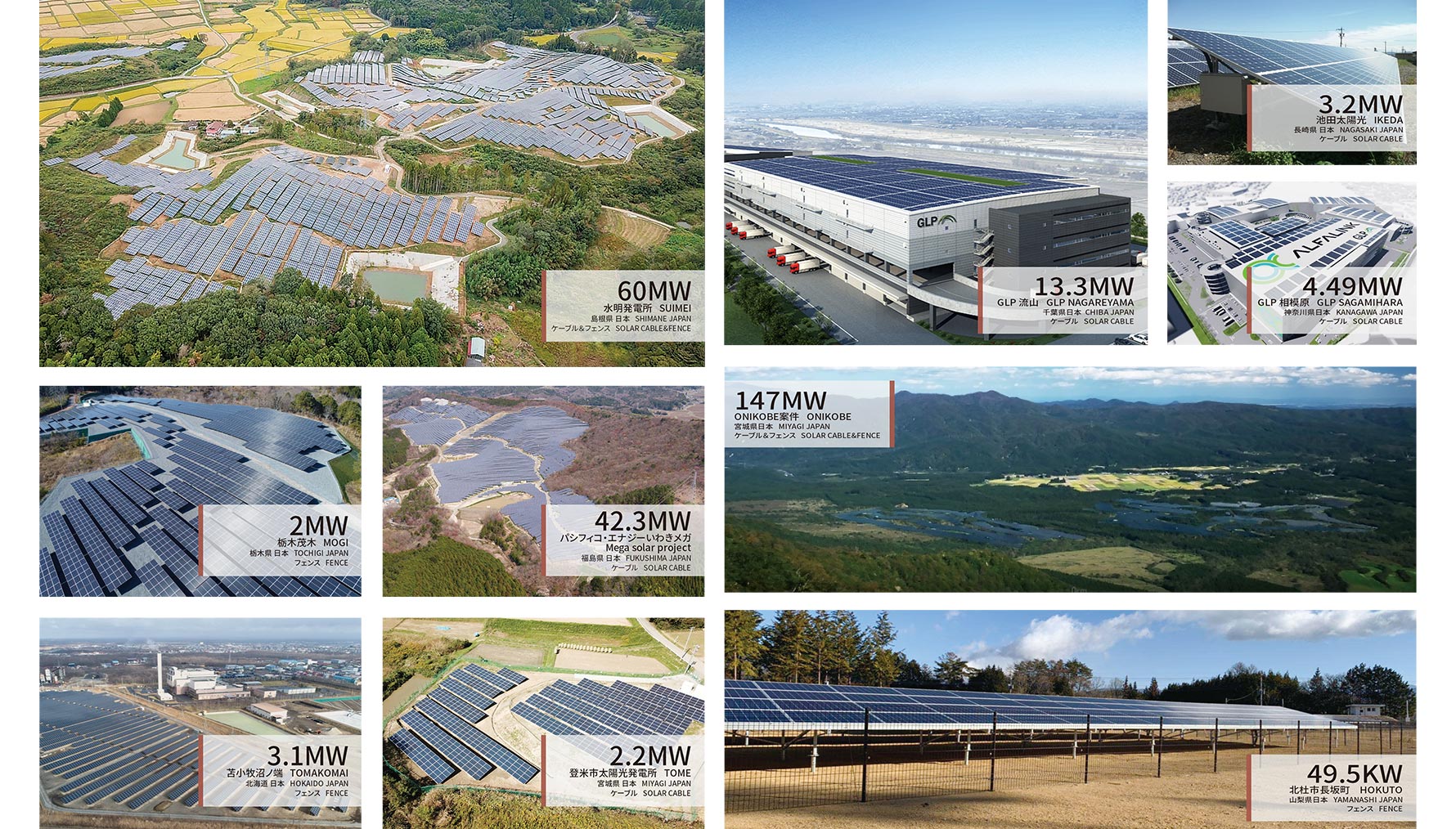

Application:
