560W PERC monocrystalline PV Modules 144 Half Cell solar panel
The 560W mono perc half cell pv module has higher power and more reliability, and is suitable for ultra-large power plants. Lower LCOE and high power output lead to lower BOS cost.
Product Characteristics:

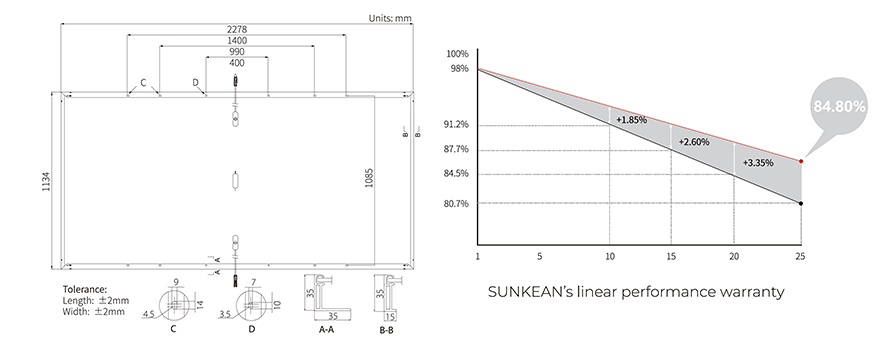

| Mechanical Characteristics | |
|
Cell arrangement |
144 (6x24) |
| Dimensions |
2278 x 1134 x 35 mm |
|
Weight |
27.5kg |
|
Glass |
Single glass, 3.2 mm tempered glass |
|
Frame |
Anodized aluminium alloy |
| J-Box |
IP68, 3 diodes |
|
Output Cable |
4mm2 ,+400,-200mm/±1400mm (Length can be customized) |
| Packaging | 31 pcs per pallet/ 155pcs per 20'GP/ 620pcs per 40'HC |
Electrical Characteristics:
Maximum Power(Pmax/W)
Open Circuit Voltage (Voc/V)
Short Circuit Current (Isc/A)
Voltage at Maximum Power (Vmp/V)
Current at Maximum Power (Imp/A)
Module Efficiency(%)
Module Type
SKE560S8-144
Testing Condition
STC
NOCT
560
418.6
50.10
47.11
14.10
11.40
42.25
39.25
13.26
10.67
21.7
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.
Operating Parameters:
|
Operational Temperature |
-40°C~+85°C |
|
Power Output Tolerance |
0~3% |
|
Voc and Isc Tolerance |
土3% |
|
Maximum System Voltage |
DC1500V(IEC/UL) |
|
Maximum Series Fuse Rating |
25A |
|
Nominal Operating Cell Temperature |
45士2°C |
|
Protection Class |
Class Il |
|
Fire Rating |
ULtype 1 or 2 IEC Class C |
Mechanical Loading:
|
Front Side Maximum Static Loading |
5400Pa |
|
Rear Side Maximum Static Loading |
2400Pa |
|
Hailstone Test |
25mm Hailstone at the speed of 23m/s |
Temperature Ratings(STC):
|
Temperature Coefficient of Isc |
+0.050%/°C |
|
Temperature Coefficient of Voc |
-0.265%/°C |
|
Temperature Coefficient of Pmax |
-0.340%/°C |
Product Features:
- Based on M10 wafer, best choice for ultra-large power plants
- Advanced module technology delivers superior module efficiency
- Excellent outdoor power generation performance
- High module quality ensures long-term reliability
Packing & Delivery:
Application:
Company Profile:
CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Mono perc solar panel,house solar power system, PV connectors, 100 watt solar panel, photovoltaic inverter etc solar products .
CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
