7-8kW-5G Single Phase Inverter
7-8kW Single phase series string inverter's efficiency of has improved dramatically.Solis-1P(7-8)kW-5G series are suitable for the installation of single-phase input pv system of residential and adopt ultra-high switching frequency, ultra-thin single four-layer board design can greatly reduce the risk caused by the connector.
| Datasheet | ||
| Model Name | SKE-1P7K-5G | SKE-1P8K-5G |
| Input DC | ||
| Recommended max. PV power |
9.1kW |
10.4kW |
| Max. Input voltage | 600V | |
| Rated voltage | 330V | |
| Start-up voltage | 120V | |
| MPPT voltage range | 90-520V | |
| Max. input current | 12.5A/12.5A | |
| Max. short circuit current | 19.5A/19.5A | |
| MPPT number/Max. input strings number | 2/3 | |
| Output AC | ||
| Rated output power | 7kW | 8kW |
| Max. apparent output power | 7.7kVA | 8kVA |
| Max. output power | 7.7kW | 8kW |
| Rated grid voltage | 1/N/PE,220/230V | |
| Rated grid frequency | 50/60HZ | |
| Rated grid output current | 30.4A | 34.8A |
| Max. output current | 33.5A | 34.8A |
| Power Factor | >0.99 (0.8 leading - 0.8 lagging) | |
| THDi | <3% | |
| Efficiency | ||
| Max. efficiency | 98.10% | |
| EU efficiency | 97.30% | |
| Protection | ||
| DC reverse-polarity protection | Yes | |
| Short circuit protection | Yes | |
| Output over current protection | Yes | |
| Surge protection | Yes | |
| Grid monitoring | Yes | |
| Anti-islanding protection | Yes | |
| Temperature protection | Yes | |
| Integrated DC switch | Optional | |
| General Data | ||
| Dimensions (W'H'D) | 310*543*180 mm | |
| Weight | 13.3kg | |
| Topology | Transformerless | |
| Seif consumption | <1W (night) | |
| Operating ambient temperature range | -25~+60°C | |
| Relative humidity | 0-100% | |
| Ingress protection | IP65 | |
| Cooling concept | Natural convection | |
| Max. operation altitude | 4000m | |
| Grid connection standard | VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99,EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727 | |
| Safety/EMC standard | IEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4 | |
| Features | ||
| DC connection | MC4 connector | |
| AC connection | Quick connection plug | |
| Display | LCD | |
| Communication | RS485, Optional: Wi-Fi, GPRS | |
Product Features:
------Max. efficiency 98.1%;
------Wide voltage range and low startup voltage;
------2 MPPT design with precise MPPT algorithm;
------Intergrated Export Power Manager (EPM);
------Compact and lightweight;
------Friendly and adaptable connection to the grid.

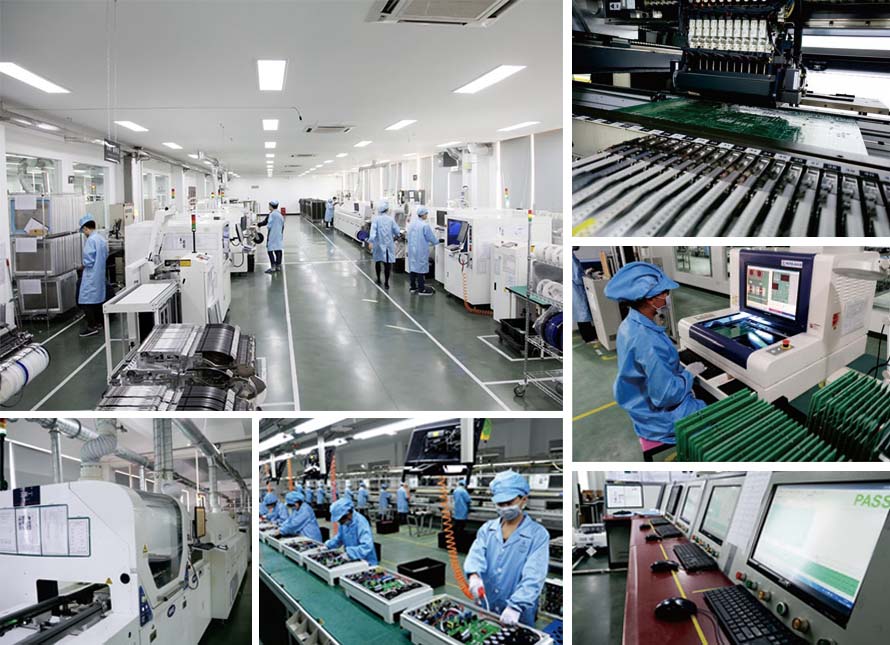

On Grid Solar Inverter production process:

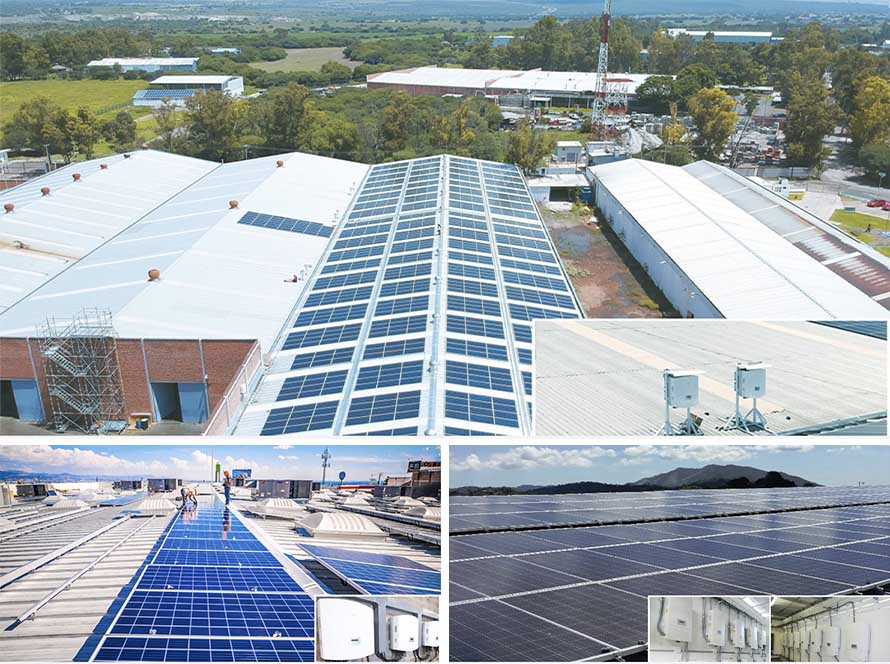

Application Scenario:
