Fence

Customized size steel fence, weld mesh hoop fence used for solar power station

Hoop hot dip galvanized fence products, rust proof, heat resistant, it can still maintain high durability even in harsh environments.

  • Item NO.:

    SK-M4
  • Lead Time:

    1-2 weeks
  • Shipping Port:

    SHANGHAI , CHINA
  • Payment:

    T/T , L/C
  • goods stock:

    1
  • Product Detail

Customized size steel fence, weld mesh hoop fence used for solar power station

This product has been widely used in photovoltaic power plants, solar power farms, site and other venues. We can provide a variety of styles depending on the different environment.


Product Description:

weld mesh hoop fence

General Specifications
Mesh Panel Height Width Surface Treatment Wire Diameter Mesh Size
Bending Panel Connection

Corner fittings

1200

1500

1800

3500 Hot Dip Galvanized

Ф3.6

200*100 Triangle


Intermediate metal fittings


Direct angle hardware

Post Height Type Surface Treatment

Specifications

Buried Depth

2000

2600

3000

Integral Type

Flat end

Hot Dip Galvanized
Ф48*T2

700

1000

1100

*It can be manufactured according to the required size and surface treatment.

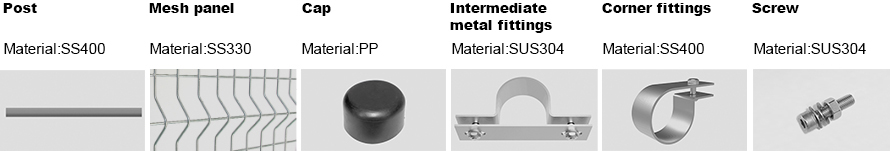

Fence Accessories:


Product Features:

(1)Product structure is simple and less material, so the project cost is low;

(2)Pallet packing is convenient for remote transportation;

(3)The bottom of the fence and brick wall built as one, effectively overcome the weakness of the network weakness, and enhance the protective performance;

(4)Installation is not affected by terrain terrain, especially for slope ground hilly areas;

(5)Highly efficient anti-corrosion long life Main market Photovoltaic power station, Golf field, residential area, playground fence network development of protected areas to cultivate agricultural development zone around the road traffic closed, temporary use fence.


Packing & Delivery:


Application Scenario:

Customized size hoop fence



Company Profile:

CABLENTIS is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Solar mounting system, 3 phase hybrid solar inverter, solar extension cables , battery for solar energy storage,pvc coated wire mesh fence, twin core solar cable etc solar products .


CABLENTIS is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.



FAQ

Q: How could it get the sample ?

A: We have Welded Wire Mesh Fence Panels in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

Q: How long is the delivery time?

A1)For Sample: 1-3 Days;

A2)For small Orders: 3-10 Days;

A3)For mass Orders:15-20 Days;

Q: What is your terms of payment ?<
