125K-EHV-5G 1500V Three Phase On Grid Solar Inverter
125kW 5G three phase series string inverter have Maximum 20 strings input, support 1.5 DC/AC inverter load ratio and higher generation efficiency,Maximum efficiency up to 99.00%.Touch safe DC Fuse holders adds convenience and safety.
Product Information:
| Datasheet | |
|
Model Name |
SKE-125K-EHV-5G |
|
Input DC |
|
|
Max. input voltage |
1500V |
|
Rated voltage |
950V |
|
Start-up voltage |
900V |
|
MPPT voltage range |
860-1450V |
|
Max. input current |
150A |
|
Max. short circuit current |
300A |
|
MPPT number/Max. Input strings number |
1/20 |
|
Output AC |
|
|
Rated output power |
125kW |
|
Max. apparent output power |
125kVA |
|
Max. output power |
125kW |
|
Rated grid voltage |
3/PE 600V |
|
Rated grid frequency |
50/60HZ |
|
Rated grid output current |
120.3A |
|
Max. output current |
120.3A |
|
Power Factor |
>0.99 (0.8 leading - 0.8 lagging) |
|
THDi |
<3% |
|
Efficiency |
|
|
Max. efficiency |
99.1% |
|
EU efficiency |
98.6% |
|
Protection |
|
|
DC reverse-polarity protection |
Yes |
|
Short circuit protection |
Yes |
|
Output over current protection |
Yes |
|
Surge protection |
DC Type II / AC Type II |
|
Grid monitoring |
Yes |
|
Anti-islanding protection |
Yes |
|
Temperature protection |
Yes |
|
Strings monitoring |
Yes |
|
I/V Curve scanning |
Yes |
|
Integrated DC switch |
Yes |
|
Integrated AC switch |
Yes |
|
General Data |
|
|
Dimensions (W*H*D) |
1178*713.5*315 mm |
|
Weight |
84kg |
|
Topology |
Transformerless |
|
Self consumption |
<3W (without anti-PID) |
|
Operating ambient temperature range |
-25~+60°C |
|
Relative humidity |
0-100% |
|
Ingress protection |
IP65 |
|
Cooling concept |
Intelligent redundant fan-cooling |
|
Max. operation altitude |
4000m |
|
Grid connection standard |
G98,G99,EN 50549-1/-2, IEC 61727
|
|
Safety/EMC standard |
IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-4 |
|
Features |
|
|
DC connection |
MC4 connector |
|
AC connection |
OT terminal (max. 185 mm2) |
|
Display |
LCD |
|
Communication |
RS485, Optional: Ethernet,Wi-Fi, GPRS |
Product Features：
- Efficient
------ Max. efficiency 99.1%
------ >150% DC/AC ratio
------ Compatible with bifacial modules
-
Safe
----- Equipped with AC/DC switch, safe and convenient maintenance
----- Globally recognised branded componentry for longer life
- Smart
----- Strong reactive power compensation
----- Multiple communication modes applicable to various scenarios
-----Remote firmware upgrade with simple operation
- Economic
----- Max. DC input voltage: 1500V
----- Supports aluminium wire access to reduce cost
Three Phase Solar Inverter production process:

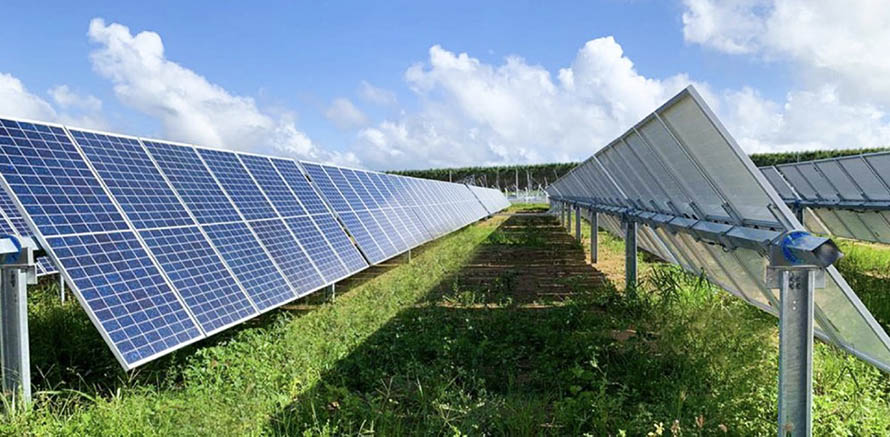

Application Scenario:
